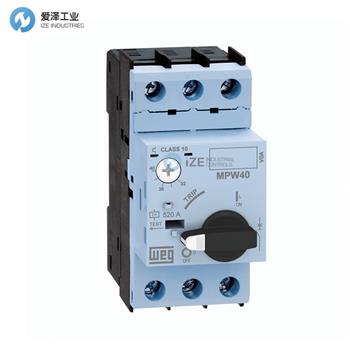

WEG斷路器MPW40-3-U010技術規格
Motor Protective Circuit Breaker | |
Reference | MPW40 |
Maximum rated current Ie | 40 A |
Setting range for thermal release | 6,3-10 A |
Number of poles | 3 |
Short-circuit release | 13 x Iemax |
Rated operational voltage Ue | 690 V |
Rated operational frequency | 50/60 Hz |
Rated insulation voltage Ui | 690 V |
Rated impulse withstand voltage Uimp | 6 kV |
Utilization category - IEC60947-2 (motor starter protector/circuit breaker) | A |
Utilization category - IEC60947-4-1 (Motor Starters) | AC-3 |
Trip test | Yes |
Overload protection | Yes |
Phase failure sensitivity | Yes |
Trip indication | Yes |
Tripping class | 10 |
Maximum operating frequency (ops./h) | 15 |
Degree of protection | IP20 |
Height | 97 mm / 3.82 in |
Width | 45 mm / 1.77 in |
Depth | 98 mm / 3.86 in |
Gross weight | 0,36 kg / 0.79 lb |
WEG斷路器其他常用型號：
WEG MPW40-3-U010 10409766
WEG MPW18-3-C016
WEG MPW18-3-C025
WEG MPW18-3-C063
WEG MPW18-3-D004
WEG MPW18-3-D016
WEG MPW18-3-D025
WEG MPW18-3-D063
WEG MPW18-3-U001
WEG MPW18-3-U004
WEG MPW18-3-U010
WEG MPW18-3-U016
WEG MPW18-3-U018
WEG MPW40-3-C016
WEG MPW40-3-C025
WEG MPW40-3-U001
WEG MPW40-3-U016
WEG MPW40-3-U020
WEG MPW40-3-U025
WEG breaker NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WEG斷路器MPW40-3-U010的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WEG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
WEG斷路器MPW40-3-U010介紹
