MERSEN熔斷器底座U71008技術參數
Technical Specifications | |
Item number | U71008 |
Description | Fuse Block 750VAC 750VDC 100A 3-Pole Box |
EAN/UPC Code | 782001323646 |
Rated voltage AC UL | 750 V |
Rated voltage DC UL | 750 V |
Frequency (Hz) | 50/60 Hz |
Ampere Rating | 100 A |
ROHS Compliant | Yes |
AC or DC | AC/DC |
Short Circuit Current Rating (SCCR) | 200 kA |
Fuse Type/Class | Semiconductor |
Number of Poles | 3-Pole |
Wiring range | Al/Cu #2-14 |
Fuse Installation Method | Clip-in |
Torque Rating | 3.954 N m |
Max Fuse Rating | 100 A |
Installation Mounting | Screw Mount or DIN Rail |
Product Width | 97 mm |
Product Length | 99.1 mm |
Product Height | 55.9 mm |
Body/Insulating Material | Thermoplastic |
Product Weight | 0.3629 kg |

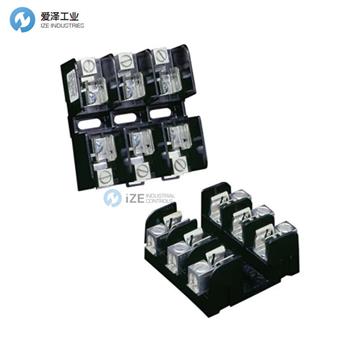

MERSEN熔斷器底座U71008產品介紹
Mersen Semiconductor 保險絲塊采用開放式設計。每個版本的額定電壓為 750 伏，可容納 14 x 51 毫米或 22 x 58 毫米 IEC 圓柱形保險絲。703、U705 和 U710 熔斷器座采用Mersen獨特的加法塊設計，可組裝到 1、2 或 3 極熔斷器座上，形成所需數量的多極分段式熔斷器座。提供盒式、螺釘式或壓板式連接器供選擇，以適應各種標準或?qū)嵭你~線。所有版本的絕緣強度均超過 2500V。U710 塊上的專利內置 DIN 導軌適配器進一步增加了設計的多功能性。所有保險絲夾均由高導電性鍍錫銅制成，并配有彈簧加固夾。
Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips.
MERSEN熔斷器底座U710系列其他常用型號：
MERSEN U71005
MERSEN U71006
MERSEN U71007
MERSEN U71008
