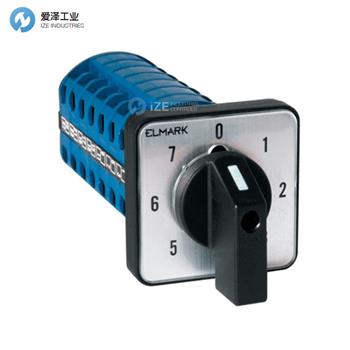

ELMARK開關LW26-20 20A技術參數
Technical data: | |
Power supply voltage: | 230/400V, 50Hz |
Number of levels: | 7 |
Number of positions: | 8 |
Insulation voltage: | 690V |
Impulse voltage withstand: | 6000V |
Mechanical wear resistance: | 3х105 commutation cycles |
Operating temperature: | -10°С - +50°С |
Humidity: | 35-85%RH |
Commutation capacity: | 20А |
Resistant to UV rays plastic | |
Cable connection: | screw joining |
Tightening torque of the bolt: | 1.33Nm |
Maximum section of the power supply conductors: | 2.5mm2 |
ELMARK開關LW26系列介紹
描述
LW26 系列旋轉開關用于切換電流范圍為 20 至 160A 的電路的開/關。它們的設計基于轉子偏心切換，通過將手柄旋轉 60 或 90 度來實現。正常操作用于切換兩根、三根或四根導體系統。有些特殊的旋轉開關在特定連接方案下開啟，用于控制電動機、電焊機和其他電氣設備。
Description:
The rotary switches LW26 series are produced for switching on/off electrical circuits with commutated current from 20 to 160A. They are designed on the bases of the rotor-eccentric switching on which is realized through turning of the handle to 60 or 90 degrees. The normal operation is used for commutation of two, three or four conductor systems. There are special rotary switches that switch on under given connection schemes and are used to control motors, electric welding machines and other consumers.
ELMARK開關其他常用型號：
ELMARK LW26-20 20A
ELMARK LW26-10Q 10A
ELMARK LW26-16Q 16A
ELMARK LW26-20Q 20A
ELMARK LW26-25Q 25A
ELMARK LW26-32Q 32A
ELMARK LW26-63Q 63A
ELMARK LW26-125Q 125A
ELMARK LW26-160Q 160A
ELMARK LW26GS-20/04 20A
ELMARK LW26GS-25/04 25A
ELMARK LW26GS-32/04 32A
ELMARK LW26GS-63/04 63A
ELMARK LW26-20N 20A
ELMARK LW26-25N 25A
ELMARK LW26-32N 32A
ELMARK LW26-63N 63A
ELMARK LW26-125N 125A
ELMARK LW26-160N 160A
ELMARK LW26-25S 25A
ELMARK LW26-63S 63A
ELMARK switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELMARK開關LW26-20 20A的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ELMARK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
