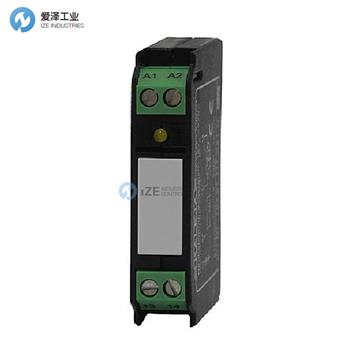

KALEJA電源模塊Mini-OM-75-30技術參數
Technical data: input circuit | |
Rated voltage / threshold voltage | 24 VDC |
Range of rated voltage min. / max. | 18V to 35VDC |
Input current during rated voltage | 5mA |
Status indicator | LED 3mm yellow |
Technical data: output circuit | |
Range of switching voltage | 5VDC to 35VDC |
Max. permanent load current / min. load current | 7,5A / 1 mA |
recommendend cooling power at rated operation | 0,7 W |
Impulse current | 30A - 50A |
Switching frequency | 100 Hz |
Output circuit | floating, 2 conductor connection |
Max. leakage current at “off” state | < 200 μA |
Other data | |
Ambient temperature range | -20°C to + 60°C |
Insulation voltage input / output | 2,5KV eff. |
Absence of vibration a/r (10...500Hz) | > 20 / 5 |
Overload protection / short-circuit-proof / temperature monitoring | no / no / no |
DIN VDE-determinations | VDE 0110 |
Position of installation / mounting | can be snapped, addable |
Mode of connection: screw terminal | single wire 4mm2, fine wire 2,5mm2 |
Dimensions: W x D x H | 13mm x 56mm x 67mm |
MTBF (SN29500, 40°C, rated load) | 435,6 years |
KALEJA電源模塊型號：
KALEJA Mini-OM-75-30
KALEJA Mini-OM-08-30
KALEJA Mini-OM-25-30
KALEJA Mini-OM-50-30
KALEJA Mini-SO-50-30
KALEJA Midi-OM-100-30
KALEJA Maxi-OM-3-5-30
