Main

Range

PowerPact

Product name

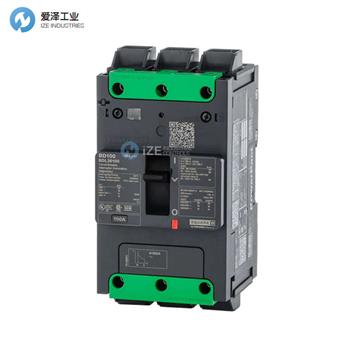

PowerPact B

Device short name

BD 100

Product or Component Type

Circuit breaker

Device Application

Distribution

Complementary

Line Rated Current

100 A

Number of Poles

3P

Control Type

Toggle

Breaking capacity code

D

Breaking capacity

25 kA 208Y/120 V AC 50/60 Hz UL 489
25 kA 240 V AC 50/60 Hz UL 489
18 kA 480/277 V AC 50/60 Hz UL 489
18 kA 480 V AC 50/60 Hz UL 489
14 kA 600Y/347 V AC 50/60 Hz UL 489
10 kA 250 V DC UL 489

[Ue] rated operational voltage

525 V AC 50/60 Hz UL 489

Network Frequency

50/60 Hz

[Ics] rated service breaking capacity

25 kA 220...240 V AC 50/60 Hz IEC 60947-2
14 kA 500...525 V AC 50/60 Hz IEC 60947-2
18 kA 380...415 V AC 50/60 Hz IEC 60947-2
18 kA 440 V AC 50/60 Hz IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV IEC 60947-2

Trip unit technology

Thermal-magnetic

Continuous current rating

0.8

[Ui] rated insulation voltage

800 V IEC 60947-2

Suitability for isolation

Yes IEC 60947-2

Utilisation category

Category A

Mechanical durability

20000 cycles IEC 947-1 Annex K ed 5.2

Electrical durability

10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

Connection pitch

1.06 in (27 mm)

AWG gauge

AWG 6...AWG 2/0 fine stranded aluminium/copper

AWG 14...AWG 3/0 rigid or stranded aluminium/copper

Local signalling

Presence of auxiliary contacts flag green)

Mounting mode

Clip-on 35 x 15 mm symmetrical DIN rail)
By screws plate)

Electrical connection

Everlink lug, line
Everlink lug, load

Tightening torque

44.3 lbf.in (5 N.m) 0.004…0.02 in2 (2.5…16 mm2) (AWG 14...AWG 4)
79.7 lbf.in (9 N.m) 0.04…0.1 in2 (25…95 mm2) (AWG 3...AWG 3/0)

Number of slots

1 auxiliary switch OF plug-in)
1 voltage release MN or MX plug-in)
1 alarm switch SD plug-in)

Power wire stripping length

0.8 in (20 mm)

Color

Gray RAL 7016)

9 mm pitches

9

Height

5.4 in (137 mm)

Width

3.2 in (81 mm)

Depth

3.1 in (80 mm)

Net Weight

2.368 lb(US) (1.074 kg)
