SBA電抗器DND系列技術參數
Protection class | IP 00 |
Ambient temperature | typ.40°C |
frequency | max.400 Hz |
Rated current | max.3x1600A |
Thermal class | 130 (B)/155 (F) |
Rated voltage | max.3x1000V |
Reactive power | max.50 kVAr |
Protection classes | I |
SBA電抗器DND系列介紹

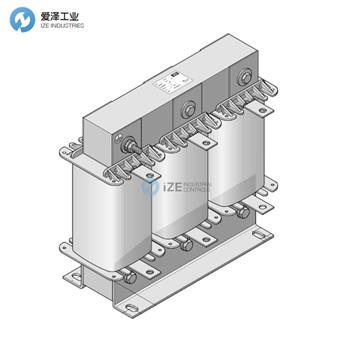

TYPE DND
category
Chokes & inductors
design type
Line choke (three-phase)
Application
As a series choke for peak current limitation, suppression of network feedback and commutation drops. Harmonics are significantly attenuated. The use as a motor choke in converter operation ensures a reduction in the edge steepness and thus a less wear-resistant motor operation with longer service life and a reduction in idle noise. The use of individual chokes is possible. Thanks to the selected inductance of the choke, the current limitation can be adapted to the respective requirements with little loss.
execution
open design (IP 00, installation max. up to IP 23)
standing on foot brackets (DIN 41307)
Depending on the rated current: screw terminals or Cu rail
Very quiet due to special core assembly and high-quality, tropical vacuum impregnation in black polyester impregnation resin
abrasion-resistant, heat-, UV- and solvent-resistant conduction sign
Special versions are available upon request
DND型
類別
扼流圈和感應器
設計種類
線路扼流圈(三相)
應用
作為峰值電流限制的串聯扼流圈，抑制網絡反饋和換向下降。 諧波明顯減弱。 在變流器運行中用作電機扼流圈可確保邊緣陡度降低，從而降低電機運行的耐磨性，延長使用壽命并降低怠速噪音。 可以使用單個扼流圈。 由于選擇了扼流圈的電感，電流限制可以適應相應的要求，而損耗很小。
執行
開放式設計（IP 00，安裝最大可達 IP 23）
站在腳支架上（DIN 41307）
根據額定電流：螺釘端子或銅軌
由于特殊的芯組件和黑色聚酯浸漬樹脂的高品質熱帶真空浸漬，非常安靜
耐磨、耐熱、耐紫外線和耐溶劑導電標志
特殊版本可根據要求提供
