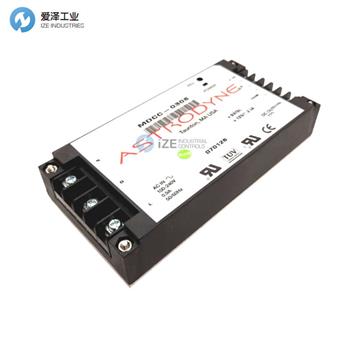

ASTRODYNE開關電源MDCC-0308技術參數
SPECIFICATIONS | |
General Specifications | |
Application | ITE |
Operating Temp | 0 to +50 C |
Cooling Type | Convection |
Physical Specifications | |
Form Factor | Encapsulated |
Size (Inches) | 5.34 x 2.6 x 1 |
Size (Mm) | 136 x 65 x 25.4 |
Weight (Lbs) | 0.96 |
Safety Agency Approvals | |
Safety Approvals | UL60950-1 2nd ed. |
Output Specifications | |
Number Of Outputs | 2 |
Output Power (W) | 30.00 |
Output Voltage (V) | 5.00 |
Output Current (A) | 3.000 |
Output Voltage 2 (V) | 12.00 |
Output Current 2 (A) | 1.250 |
Input Specifications | |
Frequency Range | 47-440Hz |
Input Voltage Range | 90-264VAC |
ASTRODYNE開關電源MCA-30系列介紹
30W 超小型模塊化開關電源
單路/雙路/三路輸出
通用 90 至 264VAC 輸入
3.3VDC 至 24VDC 輸出
3,000VAC 輸入至輸出隔離
PCB 和底盤安裝封裝
30W Ultraminiature Modular Switching Power Supplies
Single / Dual / Triple Outputs
Universal 90 to 264VAC Input
3.3VDC to 24VDC Outputs
3,000VAC Input to Output Isolation
PCB and Chassis Mount Packages
ASTRODYNE開關電源MCA-30系列其他常用型號：
ASTRODYNE MDCA-0306
ASTRODYNE MDCA-0307
ASTRODYNE MDCA-0308
ASTRODYNE MDCC-0306
ASTRODYNE MDCC-0307
ASTRODYNE MDCC-0308
ASTRODYNE MDCC-0306/DRL
ASTRODYNE MDCC-0307/DRL
ASTRODYNE MDCC-0308/DRL
ASTRODYNE MTCA-0309
ASTRODYNE MTCA-0311
ASTRODYNE MTCC-0309
ASTRODYNE MTCC-0311
ASTRODYNE MTCC-0309/DRL
ASTRODYNE MTCC-0311/DRL
ASTRODYNE POWER SUPPLIES NEW + ORIGINAL+ ONE YEAR WARRANTY
