RARA電阻器IRV800系列技術參數
Weight | 1.50000 kg |
Dimensions | 59.00 x 61.00 x 285.00mm |
Product Type | Metal Clad, Wirewound, Resist |
Series / Model | IRV |
Power Rating | 360W, 800W |
Minimum Resistance | 0.1Ω |
Maximum Resistance | 112Ω |
Tolerance | ±1%, ±2%, ±5%, ±10% |
Temperature Coefficient | ±260 ppm/°C |
Insulation Resistance | 20MΩ minimum |
Inductive or Non Inductive | Inductive, Non Inductive |
Termination / Connection | Flying Leads, Parallel Tab Terminal Connection, Serial Tab Terminal Connection |
Temperature Range (°C) | -55 to +200°C (Cement) |

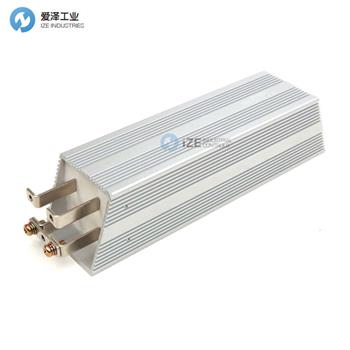

RARA電阻器IRV系列介紹
體驗 IRV（立式）系列的工程精度，為從電機驅動到電動汽車充電等各種應用提供高性能金屬包層線繞電阻器。這些電阻器的功率范圍從 60W 到 500W，提供多種選擇，感性電阻范圍為 0.1Ω 至高達 6.8kΩ，非感性電阻范圍為 0.1Ω 至 3kΩ。這些電阻器具有 ±0.5%、±1%、±2%、±5% 和 ±10% 的出色容差以及高達 ±260ppm/℃ 的電阻溫度系數 (TCR)。鋁制外殼可確保堅固的保護，適合苛刻的環境，使其成為電機驅動、制動和緩沖器、電動汽車充電和工業設備電源等應用的理想選擇。IRV 系列還提供臥式型號 (IRH)，通過飛線或凸片端子等選項提供靈活性。如需獲得 UL/CE 認證，請?zhí)剿?ULH/ULV 系列。
Experience engineering precision with the IRV (Vertical) Series, delivering high-performance metal-clad wire-wound resistors for diverse applications, from motor drives to electric vehicle charging. Ranging from 60W to 500W, these resistors offer versatile options with an inductive resistance of 0.1Ω up to 6.8kΩ and non-inductive range of 0.1Ω up to 3kΩ. These resistors boast an exceptional Tolerances of ±0.5%, ±1%, ±2%, ±5%, and ±10% and a Temperature Coefficient of Resistance (TCR) of ±260ppm/℃ max. The aluminum housing ensures rugged protection, suitable for demanding environments making it ideal for applications such as motor drives, braking and snubber, EV charging and power sources for industrial equipment. The IRV Series, also available a horizontal model (IRH), provides flexibility with options like flying leads or tab terminals. For UL/CE approval, explore the ULH/ULV Series.

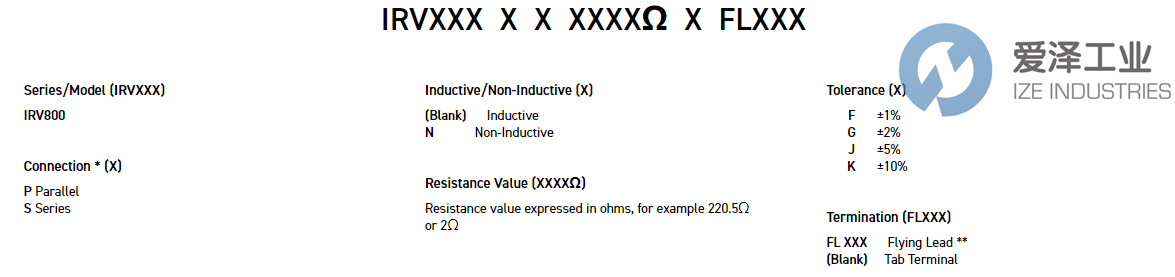

RARA電阻器IRV系列選型
RARA電阻器IRV系列其他常用型號：
RARA IRV800PN5ΩJ
RARA IRV800S-80- J19
RARA IRV60
RARA IRV80
RARA IRV100
RARA IRV120
RARA IRV150
RARA IRV200
RARA IRV300
RARA IRV400
RARA IRV500
RARA IRV600
RARA IRV800
RARA IRV1000
RARA IRV1200
RARA RESISTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RARA電阻器IRV800S-80- J19的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RARA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
RARA電阻器IRV系列IRV800S-80- J19技術參數及選型
