STRUTHERS-DUNN繼電器250NTCPX-2技術參數
Coil | |
Coil Voltage | 125VDC |
Duty | Continuous |
Pickup Voltage Range | 80% of nominal or less DC, 85% of nominal or less AC |
Nominal Coil Power | 2 / 2.75 VA (DC) 1.2 W |
Contacts | |
Contact Arrangement | 3PDT |
Contact Material | Silver Cadmium Oxide, Gold Flashed |
Contact Rating 120 / 240VAC Resistive | 10 A / 6 A |
Contact Rating 28VDC Resistive | 10 A |
Contact Resistance, Initial | 0.050 Ohms Max. |
Dielectric Strength | |
Across Open Contacts | 1000 Vrms |
Between Mutually Insulated Point | 1500 Vrms |
Insulation Resistance | 1,000 megohms min at 500VDC |
Timing | |
Operate Time (max) | 25 ms |
Release Time (max) | 20 ms |
Temperature | |
Operating Temperature Range | (AC): -10 oC to +50 oC, (DC): -10 oC to +60 oC |
Storage Temperature Range | -30 oC to +105 oC |
Miscellaneous | |
Enclosure | Octal Polycarbonate Dust Cover |
Weight | Open - 2.5 oz, Closed - 3.5 oz |
STRUTHERS-DUNN繼電器250NTCPX-2產品介紹
250 系列繼電器旨在替代廣泛用于燃?xì)廨啓C(jī)發電廠控制單元的 GE 繼電器。它們具有 GE 14 針插頭設計，還具有 LED 和霓虹燈指示燈以及用于手動檢查操作的測試按鈕。

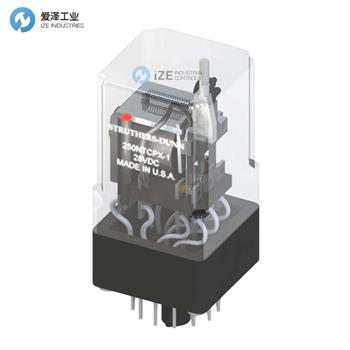

The 250 Series relay was designed as a replacement for the GE relays used widely in Control units for Gas Turbine power plants. They have the unique GE 14 pin plug design and also have LED and Neon indicator lamps with test push buttons for manual checking of operation.
STRUTHERS-DUNN繼電器250系列其他常用型號：
STRUTHERS-DUNN 250NTCPX-1
STRUTHERS-DUNN 250NTCPX-2
STRUTHERS-DUNN 250NTCPX-10
STRUTHERS-DUNN 250NTCPX-11
STRUTHERS-DUNN 250NTCPX-8
STRUTHERS-DUNN 250NTCPX-3
STRUTHERS-DUNN 250NTCPX-4
