APC UPS電源SURT5000XLICH技術參數
Specifications | |
Overview | |
Lead time | Usually in Stock |
Main | |
Min-max: 350-3500 W | 6min 17s |
Max. Capacity Used | 1 |
Main Input Voltage | 230 V |
Product or Component Type | Uninterruptible power supply (UPS) |
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
Rated power in W | 3500 W |
rated power in VA | 5000 VA |
Number of rack unit | 3U |
Provided equipment | CD with software |
Range of Product | Smart-UPS On-Line |
Batteries & Runtime | |
Run Time | View Runtime Graph |
Battery Type | Lead-Acid battery |
Extended runtime | 1 |
Number of battery filled slots | 2 |
Typical recharge time | 2.5 h |
Number of battery replacement quantity | 1 |
Battery life | 3…5 year(s) |
Replacement battery | APCRBC140 |
General | |
Number of power module filled slots | 0 |
Number of power module free slots | 0 |
Redundant | No |
UPS type | Double Conversion Online |
Physical | |
color | Black |
Height | 43.2 cm |
Width | 13 cm |
Depth | 69.85 cm |
Net Weight | 54.55 kg |
Mounting Location | Front |
Mounting preference | Lower |
Mounting mode | Rack-mounted with kit |
Two post mountable | 0 |
USB compatible | No |
Input | |
Input voltage limits | 160...280 V |
Number of input connectors | 1 hard wire 3-wire |
Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
Output | |
Bypass type | Internal bypass (automatic and manual) |
Crest factor | 3 : 1 |
Harmonic distortion | Less than 3 % |
Maximum configurable power in VA | 5000 VA |
Maximum configurable power in W | 3500 W |
Wave type | Sine wave |
Efficiency | 92 % (full load) |
Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
APC UPS電源SURT5000XLICH產品介紹

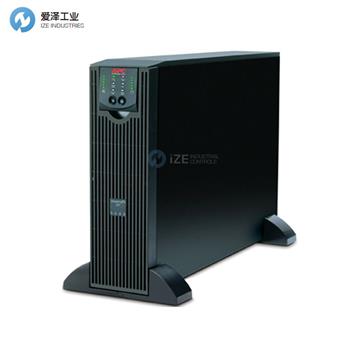

APC Smart-UPS RT 5000VA 230V配有SURT007、AP9610和長壽命電池
APC Smart-UPS RT 5000VA 230V with SURT007, AP9610, and Long Life Batteries
