SOCOMEC熔斷器38313024技術參數
TECHNICAL CHARACTERISTICS | |
Control operator | Direct : H12 / External : S2 |
Fuse size | NH1 |
Number of poles | 3 |
Rated current | 250 |
Type | I-0-Test |
Frame size | 15 |
ETIM - TECHNICAL FEATURES | |
Version as main switch | Yes |
Version as safety switch | Yes |
Suitable for fuses | NH1 |
With error protection | No |
Type of electrical connection of main circuit | Bolt connection |
Type of control element | Long turning handle |
Position control element | Front side |
Motor drive optional | No |
Motor drive integrated | No |
Version as emergency stop installation | Yes |
ETIM - ELECTRICAL CHARACTERISTICS | |
Max. rated operation voltage Ue AC [V] | 690 |
Rated permanent current Iu [A] | 250 |
Rated operation power at AC-23, 400 V [kW] | 132 |
Conditioned rated short-circuit current Iq [kA] | 100 |
Number of poles | 3 |
ETIM - MECHANICAL CHARACTERISTICS | |
Cable entry | Top/bottom |
Equipped with connectors | No |
Suitable for floor mounting | Yes |
Suitable for front mounting | Yes |
Suitable for busbar mounting | No |
Degree of protection (IP), front side | IP20 |
SOCOMEC熔斷器38313024產品介紹
開關斷路熔斷器 FUSERBLOC-Ext&Dir F/L R OP-250A-3P-DIN-熔斷器 S1。
前/側控制 FUSERBLOC 是手動操作的多極熔斷器負載斷路開關。
它們接通和斷開負載，并為任何低壓電路提供安全隔離和過流保護。
該系列包括直接控制型號和外部控制型號，具有 2 極、3 極和 4 極，電流范圍為 25 至 1250 A。

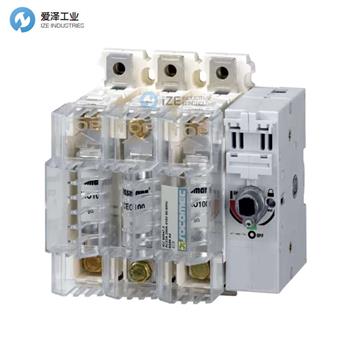

Switch-discon-fuse FUSERBLOC-Ext&Dir F/L R OP-250A-3P-DIN-Fuse S1.
Front/side control FUSERBLOCs are manually operated multipolar fuse load break switches.
They make and break on load and provide safety isolation and protection against overcurrent for any low voltage electrical circuit.
This range includes both direct and external-control models, with 2, 3 and 4 poles and from 25 to 1250 A.
SOCOMEC熔斷器FUSERBLOC系列其他常用型號：
SOCOMEC 36313002
SOCOMEC 36314002
SOCOMEC 36315002
SOCOMEC 36313003
SOCOMEC 36313004
SOCOMEC 38312005
SOCOMEC 36153005
SOCOMEC 38313005
SOCOMEC 36156005
SOCOMEC 38316005
SOCOMEC 38313024
SOCOMEC SWITCH FUSES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SOCOMEC熔斷器38313024的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SOCOMEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
