ALBRIGHT接觸器SW63-4技術參數
Rating ( Ith ) | ||
Application | Interrupted | Uninterrupted |
Thermal Current Rating | - | 80A |
Intermittent Current Rating: | ||
30% Duty | - | 145A |
40% Duty | - | 125A |
50% Duty | - | 115A |
60% Duty | - | 105A |
70% Duty | - | 95A |
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:(In accordance with UL583*) | ||
Blowouts | - | |
No Blowouts | - | |
Rated Fault Current Breaking Capacity (Icn) Resistive Load:(In accordance with UL508*) | ||
Blowouts | 120A at 96V D.C. | |
No Blowouts | 120A at 60V D.C. | |
Maximum Recommended Contact Voltages | ||
Blowouts | 96V | 120V |
No Blowouts | 48V | 60V |
Typical Voltage Drop per pole across New Contacts at 100A | 40mV | |
Mechanical Durability | > 3,000,000 Cycles | |
Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 130V | |
ALBRIGHT接觸器SW63介紹
The SW63 is a miniature series single pole, free standing, compact contactor. It is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, the SW63 is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.
The SW63 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW63 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be on the side or base of the contactor.
SW63是一款微型系列單極、獨立式、緊湊型接觸器。 它的設計目的是填補30安培繼電器和100安培接觸器之間的空白。SW63 專為中斷和不間斷負載而設計，適用于開關電阻性、電容性和電感性負載。 典型應用包括切換小型牽引電機、液壓動力單元和小型電動絞盤電機。
SW63采用銀合金尖端單極雙斷主觸頭，耐焊接、耐磨、導電性能優良。 SW63具有M6螺柱主端子和 6.3 毫米鏟形線圈連接。 它可以通過 M4 螺紋孔或安裝支架進行安裝 - 可以是已安裝的，也可以作為單獨的物品。安裝可以安裝在接觸器的側面或底座上。
ALBRIGHT接觸器SW系列其他常用型號：

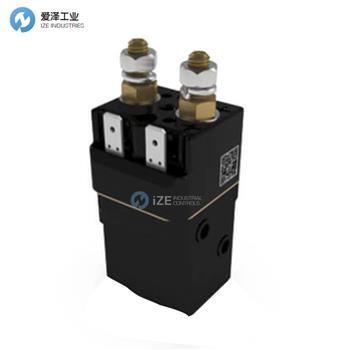

ALBRIGHT SW63-4
ALBRIGHT Contactor NEW + ORIGINAL+ ONE YEAR WARRANTY
