OBO插座UDHOME2 GV15規格介紹
Master data | |
lItem no. | 7368340 |
Type | UDHOME2 GV15 |
Description 1 | Floor socket |
Description 2 | unequipped |
Dimension | 140x140x110 |
Material | Stainless steel, material A2 |
Material symbol | A2 |
Smallest sales unit (VG) | 1 Piece |
Weight | 230,00 kg/100 pc. |
Technical data | |
Length | 140,00 mm |
Width | 140,00 mm |
Height | 110,00 mm |
Dimension h | 110,00 mm |
Number of installable devices | 2 |
Cable outlet version | Swivellable cord outlet |
Floor covering thickness | 15,00 mm |
Floor covering protection frame | □ |
Floor care | Dry |
Version for | Square |
Seal installation option | □ |
Application when used | 6.101.1 Dry floor care |
Application when unused | 6.101.1 Dry floor care |
Floor height | 110-135 mm |
Device support to accept mounting boxes | □ |
Suitable for wet care | □ |
Suitable for screed-flush closed underfloor ducts | □ |
Suitable for screed-covered underfloor ducts | □ |
Suitable for raised floor installation | √ |
Suitable for cavity floor installation | |
Suitable for underfloor ducts | □ |
With floor covering recess | √ |
Nominal size for device installation units | 2 |
Standard | EN 50085-2-2 |
Opening mechanism | Handle |
Frame version | Floor covering contact edge |
Heavy-duty version | □ |
Protection rating (IP) when used | IP20 |
Protection rating (IP) when unused | IP40 |
Protection rating IK code | IK10 |
Approvals | VDE |
Vertical load, small area | to 3,000 N |
OBO閥UDHOME2 GV15產品介紹

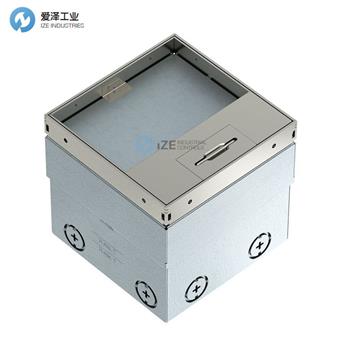

Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 110 mm, the height-adjustment range is +25 mm.
Frame and cover made of stainless steel and visible in the floor covering. Up to 2 modular data sockets can be installed in the optional mounting support. The load-bearing capacity of 15 kN is only guaranteed when in an unused state.
方形地板插座，適用于室內區域的干燥護理腔和找平地板。 安裝外殼帶有預先標記的管道插入口（M20/M25）。使用四個高度調節支撐件可將蓋子調節至地板覆蓋物的頂部邊緣。最小安裝深度為110mm，高度調整范圍為+25mm。
框架和蓋子由不銹鋼制成，在地板覆蓋物中清晰可見?？蛇x的安裝支架上最多可安裝2個模塊化數據插座。只有在未使用狀態下才能保證15 kN的承載能力。
OBO插座其他常用型號：
OBO UDHOME2 GV15
OBO socket NEW + ORIGINAL+ ONE YEAR WARRANTY
