OBO調平盒RKSN2 9 VS 25規格介紹
Master data | |
lItem no. | 7 409220 |
Type | RKSN29 VS 25 |
Description 1 | Square cassette |
Description 2 | with cord outlet |
Dimension | 243x243mm |
Material | Stainless steel, material no.1.4301 |
Material symbol | A2 |
Smallest sales unit (VG) | 1 Piece |
Weight | 444,00 kg/100 pc. |
Technical data | |
Floor covering thickness | 25,00 mm |
Floor height | 110-155 mm |
Number of installable devices | 12 |
Number of mounting boxes | 3 |
Number of cable outlets | 1 |
Version for | Square |
Cable outlet version | Swivellable cord outlet |
Floor care | Dry |
Installation depth | 110,00 mm |
Decouplable | □ |
Device support to accept mounting boxes | √ |
Suitable for | Underfloor socket structure |
Nominal size for device installa tion units | 9 |
Nominal size | 350,00 mm |
Suitable for raised floor installation | √ |
Suitable for cavity floor installation | √ |
Suitable for underfloor box | 250/350 |
Height-adjustment range | 110,00 - 155,00 mm |
Opening mechanism | Handle |
Approvals | VDE |
Vertical load, small area | to 3,000 N |
Vertical load, large area | to 15,000 N |
Heavy-duty version | □ |
Installation system type | UT4 |
OBO調平盒RKSN2 9 VS 25產品介紹

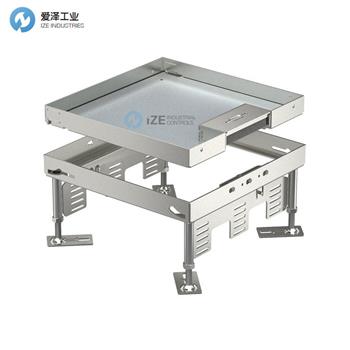

Height-adjustable cassette of nominal size 9 with cord outlet for installation of accessories in drycare floors for indoor use .
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45? devices.
標稱尺寸9的高度可調節盒，帶電源線出口，用于在室內使用的干燥護理地板上安裝配件。
用于電源線出口的高度可調節盒，3隔室?？梢园惭b3個APMT5蓋板。 用于安裝3個UT4通用支架，用于9個帶有支撐環/支撐夾的單獨安裝設備或12個Modul 45? 設備。
