SOLDO限位開SYC4200-20W03L4技術參數
SY = Copper free aluminium enclosure |
C4 = Magnetic reed SPDT, hermetically sealed, up to SIL3, Exia ready, (Switch qty: 1,2,3,4; Terminal digit: 0; temp digit: L, P) |
2 = N° 2 switch (related to switch description) |
0 = Pre-wired terminal strip with additional extra poles for solenoid valve connection (for switches 01, 03, 1F, 06 C4, C8, N1, N3, N4, 32, 70, 62, 73, 75) |
0 = Black powder coating (SY Series) |
2 = 2 cable entries M20 x 1.5p |
0 = 3D plastic visual position indicator red and green |
W = Weather proof |
0 = Standard location |
3 = Weather proof IP66/IP68 |
L = Ambient temperature range: -40 to + 80 °C (-40 to +176 oF) (standard for all switch options, excluding: 32, 70, 73, 75) |
4 = Copper free aluminium heavy duty body and cover (SY series) |

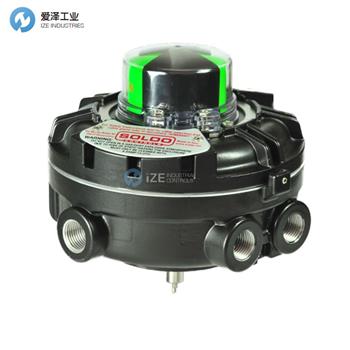

SOLDO限位開SY系列介紹
Series details
Heavy-duty limit switch boxes, designed for hazardous areas, provide a visual and electrical remote position feedback on automated valves.
Available in Copper free aluminum, the explosion proof enclosure matches the Ex d IIC T6 standards. The SY limit switch box serie, thanks to its large inner volume able to host up to 6 switches and spare pass through terminals and the four cable entries either metrics or imperial, provide a highly customizable solution meeting a wide range of applications. These including, but not limited to, the Oil and Gas, both onshore and off shore, and Petrochemical industries.
Features:
Twin shaft design, ensuring a complete sealed device: the shaft is splitted in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation.
Suitable for artic application, down to -60°C
Enhanced flexibility of electrical feedbacks options.
Up to four cable entries available in different sizes.
Enhanced corrosion resistance thanks to Copper free aluminum housing polyester powder coated
Easy wiring through the terminal PCB board
NOVA V3 switch option ensures extreme durability and high power switching capabilities
4-20 mA position transmitter options
Single tool opening design, allowing the operator to unscrew the lid by hand after removing the locker
系列詳細信息
專為危險區域設計的重型限位開關盒為自動化閥門提供視覺和電氣遠程位置反饋。
防爆外殼采用無銅鋁制成，符合Ex d IIC T6標準。SY限位開關盒憑借其較大的內部容積，能夠容納多達6個開關和備用直通端子以及四個公制或英制電纜入口，提供了滿足廣泛應用的高度可定制的解決方案。 其中包括但不限于陸上和海上石油和天然氣以及石化行業。
產品特點：
雙軸設計，確保完整的密封裝置：軸分為兩部分，每部分安裝并密封到閥體和蓋子中，即使在打開操作期間也能實現最佳的天氣隔離。
適用于低至-60°C 的北極應用
提高了電氣反饋選項的靈活性。
多達四個不同尺寸的電纜入口可供選擇。
采用無銅鋁外殼聚酯粉末涂層，增強了耐腐蝕性
通過端子PCB板輕松接線
NOVA V3開關選項可確保極高的耐用性和高功率開關功能
4-20 mA位置傳感器選項
單工具開啟設計，操作員在拆下儲物柜后可以用手?jǐn)Q開蓋子
SOLDO限位開SY系列其他常用型號：
SOLDO SYC4200-20W03L4
SOLDO SYC4200-10X23A4
SOLDO SYC4200-20D23A4
SOLDO SYC4200-214900
SOLDO SYC4200-204400
SOLDO SYH92D0-20W03L4
