SELCO負載共享器T4800系列技術參數
Specifications | |
Max. voltage | 660V |
Voltage range | 70 - 110% |
Consumption | Voltage 4VA at UN |
Continuous current | 2 x IN |
Frequency range | 35 - 70Hz |
Frequency adjustment | 48 - 62Hz |
Proportional band | ±50 - 250% load |
Dead band zone | ±2 - 10% load |
Contact rating | AC: 400V, 2A, 250VA |
Operating temperature | -20°C to +70°C |
Vibration test | 4g RMS according to IEC 60068-2-64 |
EMC | CE according to EN50081-1, EN50082-1, EN50081-2, EN50082-2, EN61000-6-2:1999 |
Approvals | Certified by major marine classification societies |
Burn-in | 50 hours before final test |
Enclosure material | Polycarbonate, flame retardant |
Weight | 0.7kg |
Dimensions | 70 x 150 x 115mm (H x W x D) |
Installation | 35 DIN rail or two 4mm (3/16”) screws |
SELCO負載共享器T4800系列產品介紹

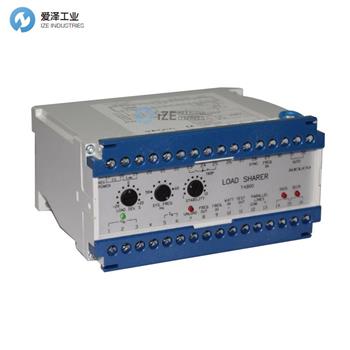

The T4800 Load Sharer for Conventional Governors
The Load Sharer T4800 is designed to control a generator operating in parallel with the grid, or a generator operating in parallel with other generators (which are also controlled by T4800 units).
The T4800 will continuously measure and compare the active current on the generator to an external DC reference signal connected to the “parallel lines” input. The T4800 will increase or decrease the speed of the generator (through the governor) if it finds the active current level to be either too low or two high. Two built-in relays provide the increase and decrease pulses for a conventional governor. The strength (width) of the pulses is proportional to the frequency/phase deviation. The E7800 Motorised Potentiometer can be used to adapt the contact pulses to a signal suitable for the speed trim input of an electronic speed controller.
Features:
Active load sharing
System frequency control
Relay based speed control
Reverse power protection
Soft unload with breaker trip
50 hour burn-in before test
Certified for marine use
適用于傳統調速器的T4800負載共享器
負載共享器T4800旨在控制與電網并聯運行的發電機，或與其他發電機（也由 T4800 裝置控制）并聯運行的發電機。
T4800將連續測量發電機上的有功電流并將其與連接到“平行線”輸入的外部直流參考信號進行比較。如果T4800發現有功電流水平太低或高兩倍，它將增加或降低發電機的速度（通過調速器）。 兩個內置繼電器為傳統調速器提供增加和減少脈沖。脈沖的強度（寬度）與頻率/相位偏差成正比。E7800 電動電位計可用于將接觸脈沖調整為適合電子速度控制器的速度微調輸入的信號。
特征：
主動負載共享
系統頻率控制
基于繼電器的速度控制
逆功率保護
帶斷路器跳閘的軟卸載
測試前50小時老化
經船用認證
SELCO負載共享器其他常用型號：
SELCO T4800.0010
SELCO T4800.0020
SELCO T4800.0030
SELCO T4800.0040
SELCO T4800.0050
SELCO T4800.0060
SELCO T4800.0070
