NORATEL環形變壓器RT系列技術規格
Technical specifications | |
Input voltage: | 230V |
Frequency: | 50-60Hz |
Output voltage: | max 2x45V |
According to: | EN61558 |
Test/insulating voltage: | 4kV AC RMS |
Construction class: | II |
Insulation class: | B (130°C) |
Ambient temp. (t a ): | 40°C |
Degree of protection: | IP00 |
Supplied with rubber pads and metal washer | |

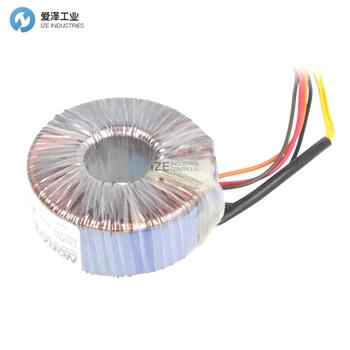

NORATEL環形變壓器RT系列介紹
Single-phase toroidal transformers, power range from 20 to 300VA. Designed and tested according to EN61558. Suitable for installation in electronically equipment. Designed as a safety isolating transformer with separate insulated windings and prepared for class II equipment. Short circuit and overload protected with thermal fuse on primary side. Up to 50% less weight than a similar conventional transformer. Low magnetisation currents and no-load losses. Suitable as safety isolating transformer in constructions where low weight, flexible dimensions and optimum conditions between dimensions are preferable.
單相環形變壓器，功率范圍20至300VA。 根據 EN61558 設計和測試。適合安裝在電子設備中。設計為具有獨立絕緣繞組的安全隔離變壓器。并為II類設備做好準備。初級側有熱熔斷器進行短路和過載保護。比類似的傳統變壓器重量減輕 50%。低磁化電流和空載損耗。適用于重量輕、尺寸靈活且尺寸之間具有最佳條件的結構中作為安全隔離變壓器。
NORATEL環形變壓器RT系列其他常用型號：
NORATEL RT020-30516
NORATEL RT020-2006
NORATEL RT020-2010
NORATEL RT020-1011
NORATEL RT020-2012
NORATEL RT020-2015
NORATEL RT020-2018
NORATEL RT020-2024
NORATEL transformer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NORATEL環形變壓器RT020-30516的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NORATEL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
NORATEL環形變壓器RT系列RT020-30516技術規格
