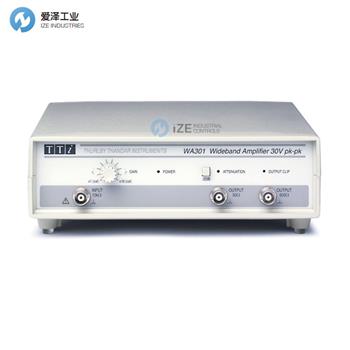

AIM-TTI濾波放大器WA301技術參數
SPECIFICATIONS | |
Bandwidth: | -3dB at 1MHz |
Flatness: | -1dB at 400kHz |
Rise/fall time: | <0.5μs |
Distortion: | <0.1% at 1kHz |
Gain: | Vernier adjustment between x1 and x10 |
Input impedance: | 10k? |
OUTPUT | |
Output impedance: | 50? and 600? (separate sockets) |
Output 0dB: | 30V pk-pk max. from 50? (15V into 50?) |
Output -20dB: | 3V pk-pk max. from 50? (1.5V into 50?) |
DC offset: | <5mV |
GENERAL | |
Power: | 230V or 115V AC nominal 50/60Hz, adjustable internally; operating range ±14% of nominal; 20VA max.; Installation category II |
Size: | 210(W) x 75(H) x 230(D)mm, inc. feet. |
Weight: | 1.1kg |
Operating Range: | + 5°C to 40°C, 20-80% RH. |
Storage Range: | - 40°C to 70°C |
Safety: | Complies with EN61010-1 |
EMC: | Complies with EN55081-1 and EN50082-1. |
AIM-TTI濾波放大器WA301產品介紹
GENERAL DESCRIPTION
The WA301 is a DC to 1MHz amplifier with a maximum output (e.m.f.) of 30 volts peak to peak from a 50?source impedance. A 600? output is also provided.
The unit can provide up to 15 volts peak to peak into a 50? load and can drive up to 300mA peak into a low impedance or short circuit.
Fully variable gain between x1 and x10 is provided by a rotary vernier with calibrated end stops. A -20dB output attenuator is also incorporated.
An "output clip" LED is provided to warn if the output amplitude exceeds ±15V.
APPLICATIONS
Most function generators have a maximum open-circuit output voltage of 20V peak to peak. The WA301 enables this to be boosted to 30V peak to peak.
Commonly the WA301 will be used as a slave to a function generator with the gain set to x10. Thus an output of 3V pk-pk at the function generator would give rise to an output of 30V pk-pk from the WA301.
Alternatively the variable gain facility might be used to provide an adjustable output level from a fixed level source.
An example of this is a buffer amplifier to a waveform DAC such as the VIPS20 from the TTi virtual instrument module range. The WA301 can provide a waveform amplitude variable between 300mV and 30V pk-pk from 50? whilst maintaining full 12-bit resolution. Lower output levels could be generated by sacrificing resolution.
一般說明
WA301是一款DC至1MHz放大器，在50Ω源阻抗下具有30伏峰峰值的最大輸出。還提供600Ω輸出。
該裝置可為 50Ω 負載提供高達15伏的峰峰值電壓，并可驅動高達300mA的峰值電流進入低阻抗或短路狀態。
包含一個 -20dB 輸出衰減器。
如果輸出振幅超過 ±15V，則提供LED以發出警告。
應用程序
大多數函數發生器的最大開路輸出電壓為 20V 峰峰值。將其升壓至 30V 峰峰值。
通常，WA301 將用作函數發生器的從機，增益設置為 x10。 因此，函數發生器的 3V pk-pk 輸出會導致 WA301 產生 30V pk-pk 的輸出。
或者，可變?cè)鲆嬖O(shè)施可用于從固定電平源提供可調輸出電平。
這方面的一個例子是波形 DAC 的緩沖放大器，例如 TTi 虛擬儀器模塊系列中的 VIPS20。 WA301 可以提供 300mV 和 30V pk-pk 之間的波形幅度變量，同時保持完整的12位分辨率。 可以通過降低分辨率來產生較低的輸出電平。
AIM-TTI濾波放大器其他常用型號：
AIM-TTI WA301
