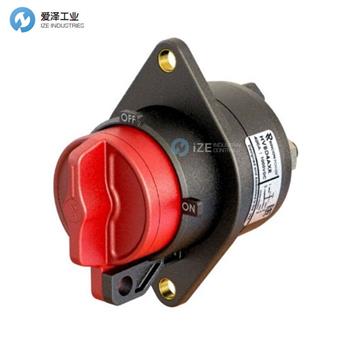

RINCON POWER電池開關HVBD系列技術參數
SPECIFICATIONS | |
Contact Arrangement | Form X, SPST |
Operating Voltage | Up to1,000VDC (no switching under load) |
Dielectric Withstand Voltage | 5,000VDC, 1 minute |
Continuous Current | 300A, 400A, or 600A continuous |
Make and Break2 (400A @ 24VDC) | 5,000 cycles |
Voltage Drop (Max at nominal load) | 40mV |
Min Insulation Resistance | 100Mohm |
Shock, 1/2 Sine, 11ms | 25G |
Vibration, Sinusoidal (10-500Hz Peak) | 4G |
Vibration, Sinusoidal (500Hz-2000Hz Peak) | 20G |
Operating Temperature3 | -55?C to 85?C |
Ingress Protection | Exceeds IP69, (Hermetically sealed) |
Weight | 425g |
Case Material | PA GF |
Switch Lever Material | PA GF |
Mounting | 100mm | C:C, 2X M8 |
Mounting Position | Any |
Auxiliary Contact (SPDT)– Continuous Current | 3A |
RINCON POWER電池開關HVBD系列介紹
HVBD 是電池斷開技術的新水平
? 堅固的金屬陶瓷氣密密封
? 行業優質的介質耐壓
? 高溫性能
? 超低接觸電阻在整個生命周期
? 為惡劣環境做好準備
? 專為符合 OSHA 標準的上鎖/掛牌 (LOTO) 而設計
? GIGAVAC1 HBD 系列電池斷路開關的直接替代品
? 可選的集成輔助觸點
HVBD is the next level in battery disconnect technology
? Robust metal-ceramic hermetic seal
? Industry leading dielectric withstand voltage
? High temperature performance
? Ultra-low contact resistance over life
? Ready for harsh environments
? Designed for OSHA compliant lockout/tagout (LOTO)
? Drop-in replacement for GIGAVAC1 HBD Series battery disconnect switches
? Optional integrated auxiliary contacts

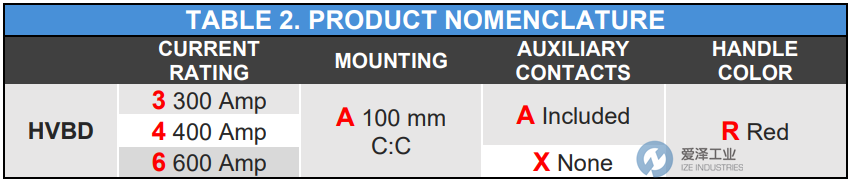

RINCON POWER電池開關HVBD系列選型
RINCON POWER電池開關HVBD系列其他常用型號：
RINCON POWER HVBD4AXR
RINCON POWER HVBD4AAR
RINCON POWER HVBD6AAR
RINCON POWER HVBD6AXR
RINCON POWER HVBD3AAR
RINCON POWER HVBD3AXR
