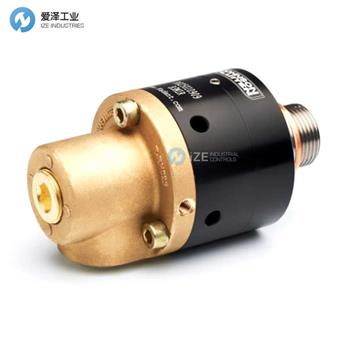

JOHNSON FLUITEN接頭R025010909技術參數
Flow | Single Passage |
Rotor (K) | G 1" RH (ISO 228-1) |
Inlet M | G 1" RH (ISO 228-1) |
RPM (max) | 2300 |
Seal Package | B3 |
Fluid | Water, Air, Hydraulic Oil, Glycol, Coolant |
Pressure | 50 |
Manufacturer | Johnson-Fluiten |
Weight | 2.100 kg |
Joint Size | 1" |
Temperature (min) | -19°C |
Temperature (max) | 120°C |
JOHNSON FLUITEN接頭R系列介紹
帶 B3 密封件的 R 系列專為廣泛的應用而設計。材料是針對 SIC 的石墨。R-union 非常適合水、液壓油、空氣和乙二醇。密封件經過微研磨以獲得最佳性能。 R 接頭的尺寸從 9 毫米到 150 毫米不等。單通道,雙通道,帶螺紋和法蘭連接。優質材料、加工精度和裝配過程中對細節的關注使 R-union 非常適合各種應用。所有工會都經過壓力測試。R 兩通的最高溫度為 120 °C。無需從機器上拆卸接頭即可輕松完成密封包的維修,從而減少停機時間,增加產量
The R line with B3 seals is designed for a large range of application. The materials are graphite against SIC. The R-union is perfect for water, hydraulic oil, air and glycol. The seals are micro lapped for optimal performance. The R union is available in dimensions from 9mm to 150mm. In single passage, double passage, with treaded and flanged connections. The premium materials, the machining precision and the attention to detail during assembly make the R-union perfect for a large range of applications. All unions are pressure tested. The maximum temperature for the R union is 120 °C. Repair of the seal package is easily done without dismounting the union from the machine reducing down-time to help you produce more

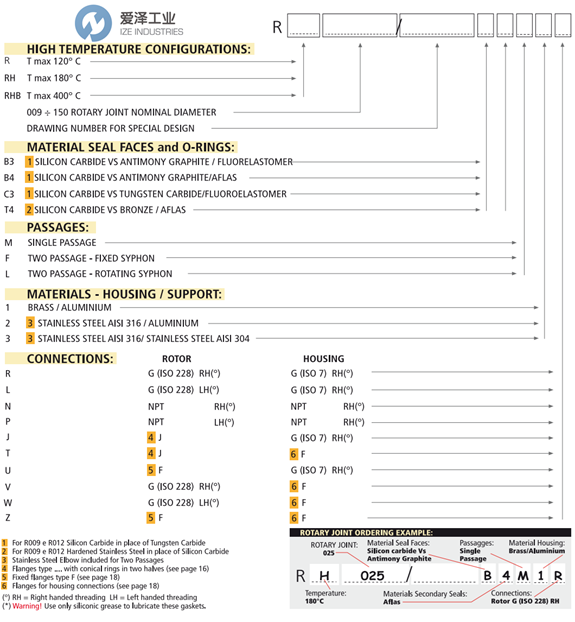

JOHNSON FLUITEN接頭R系列選型
JOHNSON FLUITEN接頭R系列其他常用型號:
JOHNSON FLUITEN R009020622
JOHNSON FLUITEN R012001963
JOHNSON FLUITEN R012002296
JOHNSON FLUITEN R012019858
JOHNSON FLUITEN R012004960
JOHNSON FLUITEN R012002295
JOHNSON FLUITEN R012020623
JOHNSON FLUITEN R019003061
JOHNSON FLUITEN R019004475
JOHNSON FLUITEN R019020624
JOHNSON FLUITEN R019003062
JOHNSON FLUITEN R019020611
JOHNSON FLUITEN R019020625
JOHNSON FLUITEN R025010909
JOHNSON FLUITEN R025005179
JOHNSON FLUITEN R025020546
JOHNSON FLUITEN R025020626
JOHNSON FLUITEN R031003361
JOHNSON FLUITEN R031020628
JOHNSON FLUITEN R031003362
JOHNSON FLUITEN R038020632
JOHNSON FLUITEN VJOINT NEW + ORIGINAL+ ONE YEAR WARRANTY
