OKEEFECONTROLS接頭IC-4006-35-SS技術參數
Specifications | |
Material | 316 SS |
Nominal Orifice Size | 35 |
CV | 0.028 |
Maximum Operating Pressure | 4000 psig |
Maximum Pressure Differential | 200 psid |
Connection A | 1/4" OD Tube Compression |
Connection B | 1/4" OD Tube Compression |
Dimensions | |
Orifice Diameter | 0.035 in |
Orifice Diameter Accuracy | ±0.0005 in |
Width Across Flats (Hex) | 9/16 in |
Total Length | 1.61 in |
Width Across Flats (Hex) 2 | 1/2 in |

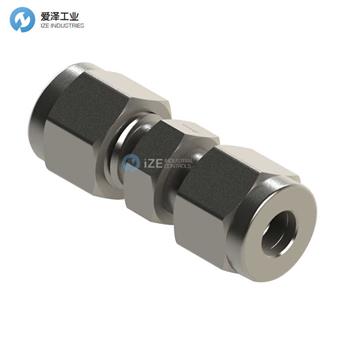

OKEEFECONTROLS接頭IC-4006-35-SS產品介紹
部件號 IC-4006-35-SS，壓縮接頭 - 管接頭，1/4 英寸外徑，IC-4006 型
適用于過程工業中使用的常見配件的精密孔板組件。壓合嵌件與標準壓縮管接頭一起使用，以形成精密孔組件。此處顯示的接頭適用于 1/4" OD 管或 3/16" OD 管。
? 高壓能力
? 雙向流動
? 經濟型精密孔板
? 可重復的孔口尺寸和形狀
? 可預測的流量
Part Number IC-4006-35-SS, Compression Fittings - Tube Union, 1/4 inch OD, Type IC-4006
Precision orifice assemblies that adapt to common fittings used in the process industry. Press-fit inserts are used with standard compression tube fittings to form a precision orifice assembly. The fittings shown here are for 1/4" OD tubing, or 3/16" OD tubing.
? High Pressure Capability
? Bi-directional Flow
? Economical Precision Orifice
? Repeatable Orifice Size and Shape
? Predictable Flow Rate

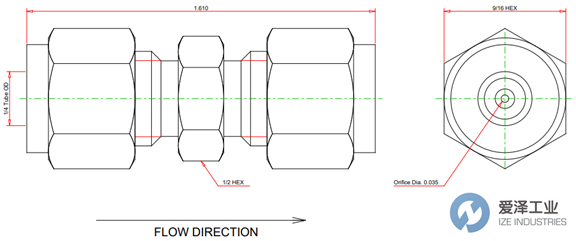

OKEEFECONTROLS接頭IC-4006-35-SS技術尺寸
OKEEFECONTROLS接頭其他常用型號：
OKEEFECONTROLS IC-4006-11-SS
OKEEFECONTROLS IC-4006-12-SS
OKEEFECONTROLS IC-4006-13-SS
OKEEFECONTROLS IC-4006-14-SS
OKEEFECONTROLS IC-4006-15-SS
OKEEFECONTROLS IC-4006-16-SS
OKEEFECONTROLS IC-4006-29-SS
OKEEFECONTROLS IC-4006-31-SS
OKEEFECONTROLS IC-4006-32-SS
OKEEFECONTROLS IC-4006-33-SS
OKEEFECONTROLS IC-4006-35-SS
OKEEFECONTROLS IC-4006-37-SS
