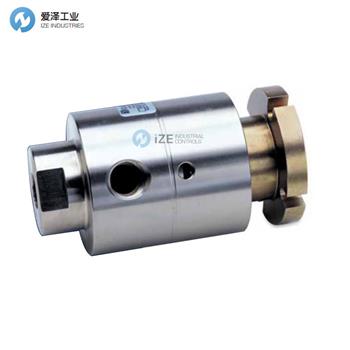

DUFF-NORTON旋轉接頭1650系列技術參數
Operating Parameters | |
MEDIA | Water, Air, Hydraulic Fluid |
PRESSURE | 2,900 PSI |
TEMPERATURE | 250o F |
SPEED | 1,500 RPM |
THREADS | 1/4” to 1” NPT |
MATERIAL | Nickel Plated Steel |
STANDARD NUMBER OF PORTS | Two Port Design |

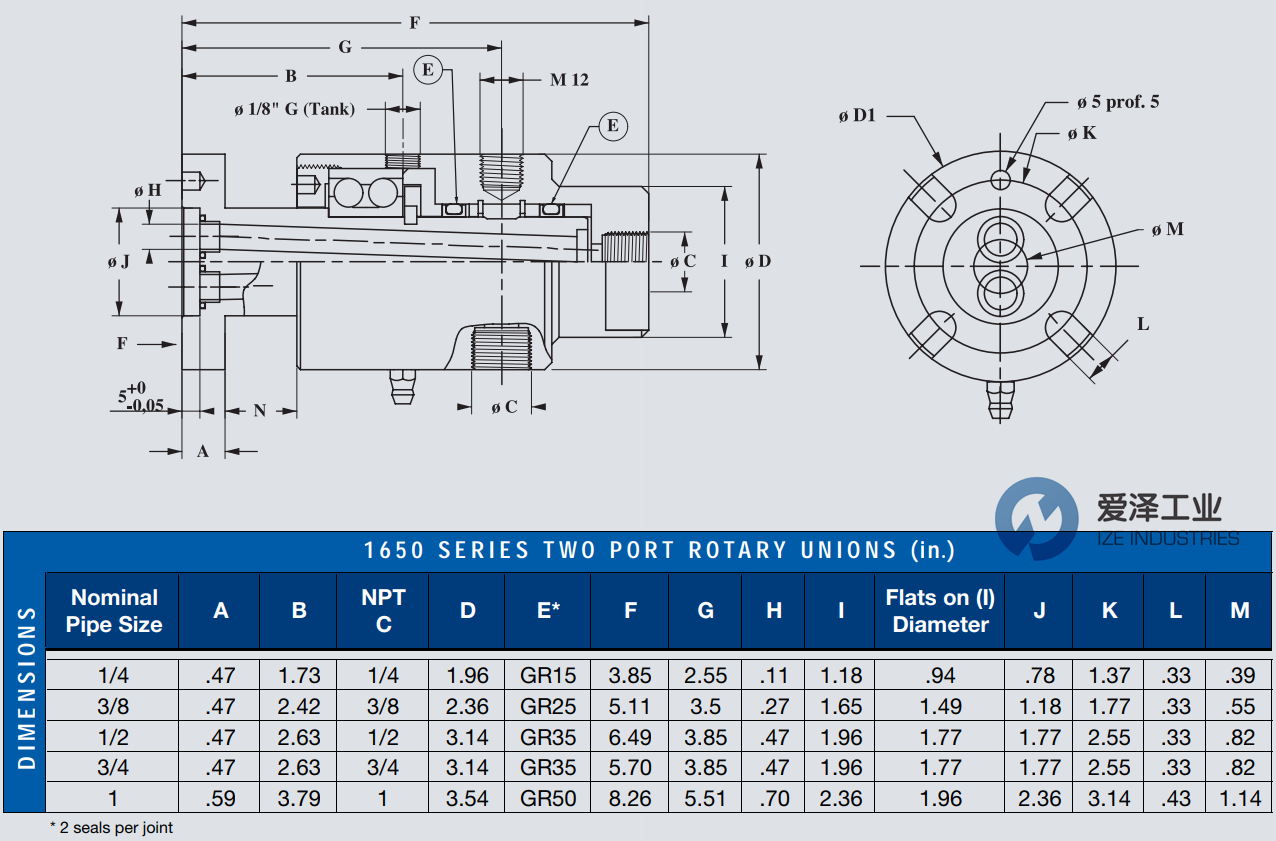

DUFF-NORTON旋轉接頭1650系列介紹及技術尺寸
兩端口設計
具有兩種電路，可用于多種應用。
耐腐蝕
鍍鎳鋼具有耐腐蝕性能。也可用全不銹鋼和硬化陶瓷軸制成，以實現更高的速度和更長的使用壽命。
中速和中壓能力
提供同時使用中等速度和壓力的能力
無交叉污染
可以與兩種不同的流體一起使用。 所有回路均單獨密封，以消除交叉污染。
Two Port Design
Features two circuits for use in a wide variety of applications.
Corrosion Resistant
Nickel plated steel for corrosion resistance.Also available in all stainless steel and with a hardened ceramic shaft for higher speeds and longer life.
Medium Speed & Medium Pressure Capable
Offers the ability to use medium speed and pressure simultaneously
No Cross Contamination
Can be used with two dissimilar fluids. All circuits are individually sealed to eliminate cross contamination.
DUFF-NORTON旋轉接頭1650系列其他常用型號：
DUFF-NORTON 760602C F1619BICNPT
DUFF-NORTON 760603C F1683BICNPT
DUFF-NORTON 760604C F1644BIC1/2NPT
DUFF-NORTON 760605C F1644BIC3/4NPT
DUFF-NORTON 760606C F1760BICNPT
DUFF-NORTON 760597C F1619BINPT
DUFF-NORTON 760598C F1683BINPT
DUFF-NORTON 760599C F1644BI1/2NPT
DUFF-NORTON 760600C F1644BI3/4NPT
DUFF-NORTON 760601C F1760BINPT
DUFF-NORTON 760592C F1619BKCNPT
DUFF-NORTON 760593C F1683BKCNPT
DUFF-NORTON 760594C F1644BKC1/2NPT
DUFF-NORTON 760595C F1644BKC3/4NPT
DUFF-NORTON 760596C F1760BKCNPT
DUFF-NORTON 760559C F1619BKNPT
DUFF-NORTON 760560C F1683BKNPT
DUFF-NORTON 760561C F1644BK1/2NPT
DUFF-NORTON 760562C F1644BK3/4NPT
DUFF-NORTON 760563C F1760BKNPT
