HOSCO接頭RYA-6產品參數

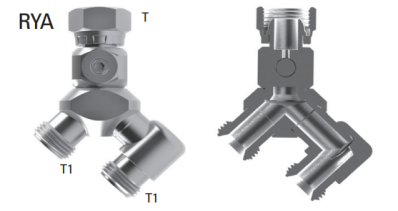

| Specification | ||
Part Number | T(F) | T1(M) | |
RYA-6 | 3/8 NPS | 3/8 NPS | |
RYA-6B | 3/8 BSP | 3/8 BSP | |
RYA-4 | 3/8 NPS | 3/8 NPS | |
RYA-4B | 3/8 BSP | 3/8 BSP | |
HOSCO接頭RYA-6產品介紹
Hosco不銹鋼限流器為噴頭提供可靠，長壽命的流體流量控制。該產品系列包括循環和非循環版本，即使在點膠時也可以內部設置（防篡改）或從外部進行調節。限流器的長錐形針頭設計提供了從完全關閉到超過1000 cc / min（取決于壓力和粘度）的精細流量調節。從限流器到限流器站的設置是可重復的，因此設置相對容易。內部設置樣式可能需要RAB-6工具在限流器“在線”時提供初始設置點調整。外部調整的版本需要使用限流器隨附的內六角扳手進行調整。
所有內部限流器的最大扭矩規格
不超過22 nm或194英寸磅?；?6英尺磅
Hosco Stainless Steel Restrictors provide reliable, long life fluid flow control to an applicator. The family of products consists of recirculating and non-circulating versions that can be internally set (tamperproof) or externally adjusted even while dispensing. The long tapered needle design of the restrictors provide fine flow rate adjustments from complete shut off to over 1000 cc/min (depending on pressure and viscosity). Settings are repeatable from restrictor to restrictor station so set up is relatively easy. The internally set styles may require the RAB-6 Tool to provide initial set point adjustment while the restrictor is “on line”. The externally adjusted versions require an allen wrench for adjustment which is included with the restrictor.
Maximum Torque Specification for all internal restrictors
Not to exceed 22 nm or 194” lbs. or 16 ft lbs.
HOSCO接頭RYA-6其他常見型號：
HOSCO RIA-6B
HOSCO RYA-6
HOSCO RIA-6
HOSCO RYA-4
HOSCO RYA-4B
HOSCO RY-4
HOSCO RY-4B
HOSCO RY-6
HOSCO RY-6B
HOSCO Restrictors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HOSCO接頭RYA-6的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HOSCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
