ANAMET EUROPE接頭726.740.1規格介紹
THREAD ISO | M40 x 1,5 |
|
CLAMPING RANGE (MM) | ||
S 1 + S 2 | 22 - 27 | |
S 1 | 27 - 32 | |
DIMENSIONS IN MM | ||
A | 45 | |
B | 13 | |
C | 43 | |
D | - | |
E | 43 | |
STANDARD PACKAGE | 2 | |
ARTICLE NUMBER | 726.740.1 | |
WEIGHT (KG/100) | 15,2 |
ANAMET EUROPE接頭介紹

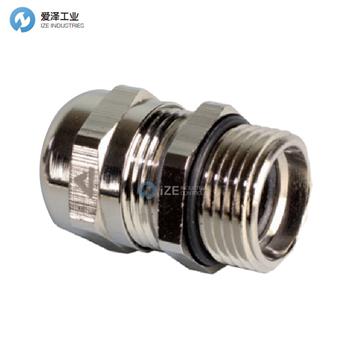

ANACONDA電纜接頭，雙層密封
Anaconda鎳鍍銅電纜接頭包含兩個夾緊密封件，一個是大直徑密封，其中嵌入了一個小直徑密封。兩個密封均由V0級EPDM橡膠制成，并經過測試和認證，符合EN45545-2的危害等級（HL1 / HL2 / HL3）和用于軌道應用的EN45545-3的E15/E30標準。當使用大直徑電纜時，可以單獨使用大直徑密封；當使用小直徑電纜時，需要兩個夾緊密封，小的嵌入大的密封中。兩個密封件作為電纜接頭的標準部分提供。雙密封電纜接頭還可以用于帶編織線的電纜，用于EMC應用，只需在安裝前將編織線的末端折疊在夾緊密封件上即可。
材料和結構：
結構：由三個部分組成的鎳鍍銅配件（主體、鎖緊螺母和雙夾緊密封）。
材料：主體和鎖緊螺母為鎳鍍銅。夾緊密封件由EPDM橡膠制成。
特殊認證：電纜接頭的夾緊橡膠具備阻燃V0級EPDM，符合EN45545-2的HL 1、HL 2和HL 3標準及R22和R23要求，同時符合EN45545-3對于墻壁和天花板應用的E30防火等級。
溫度范圍：-55°C至+125°C連續使用。
防護等級：IP 68，NEMA 4X。
顏色：金屬色。
ANACONDA CABLE GLANDS WITH DOUBLE LAYER SEALS
Anaconda nickel plated brass cable glands contain two clamping seals, one with a larger diameter seal into which a smaller diameter seal fits. Both seals are made of V0 rated EPDM rubber, tested and certified in compliance with EN45545-2, Hazard Level (HL1 / HL2 / HL3) and E15/E30 according t o EN45545-3 for wall and ceiling used for rail applications. When a larger diameter cable is used the larger diameter seal can be used on its own and when a smaller diameter cable is used both clamping seals are required with the smaller one inserted inside the larger one. Both seals are supplied standard as part of the cable gland. The double seal cable glands can also be used with braided cables for EMC applications by simply folding the end of the braid over the top of the clamping seal(s) before mounting
Material & Construction:
Construction: Nickel plated brass fitting,consisting of 3 parts (body, counter nut and double clamping seal).
Material: The body and counter nut are nickel plated brass. The clamping seals are made from EPDM rubber.
Special approvals: The cable glands have clamping rubbers from flame retardant V0-rated EPDM and are HL 1, HL 2 and HL 3 according EN 45545-2, R22 and R23, as well as Meeting the fire-barrier classification E30 according EN45545-3 for both wall and ceiling applications.
Temperature: -55 °C till +125 oC continuous.
Protection class: IP 68, NEMA 4X.
Colour: Metal coloured
ANAMET EUROPE接頭其他常用型號：
ANAMET EUROPE 726.712.1
ANAMET EUROPE 726.713.1
ANAMET EUROPE 726.716.1
ANAMET EUROPE 726.717.1
ANAMET EUROPE 726.720.1
ANAMET EUROPE 726.722.1
ANAMET EUROPE 726.725.1
ANAMET EUROPE 726.728.1
ANAMET EUROPE 726.732.1
ANAMET EUROPE 726.735.1
ANAMET EUROPE 726.740.1
ANAMET EUROPE 726.745.1
ANAMET EUROPE 726.750.1
