Maximum ANN-BUS Voltage: | 24 VDC |
Maximum Current: – Alarm: | 75 mA Standby: 15 mA |
Ambient Temperature: | 32 oF to 120 oF (0 oC to 49 oC) |
Relative Humidity: | 93% ± 2% RH (non-condensing) at 90 oF ± 3 oF (32 oC ± 2 oC) |
For use indoors in a dry location | |
Connections to AUTOPULSE 542R/542D Control Panel are power-limited and supervised. | |
Relay Contact Ratings: | 2 Amps @ 30VDC (Resistive) 0.5 Amps @ 30VAC (Resistive) |
當與兼容的AUTOPULSE 542R/542D控制面板一起使用時，ANN-RLY繼電器模塊提供十 (10)個可編程的C型繼電器。ANN-RLY 模塊可以安裝在 AUTOPULSE 542R/542D 控制面板主電路板機箱內或使用可選的安裝支架部件號435897安裝在外殼的電池區域。
ANN-RLY和AUTOPULSE 542R/542D控制面板通過采用ANN-BUS通信格式的兩線串行接口進行通信。額外的兩根電線用于24伏直流電源。一根四芯非屏蔽電纜可用于電力和數據通信。
最多八(8)個ANN-BUS設備可以連接到AUTOPULSE 542R/542D控制面板的ANN-BUS。當超出可用面板功率時，ANN-BUS設備可以由輔助電源供電。

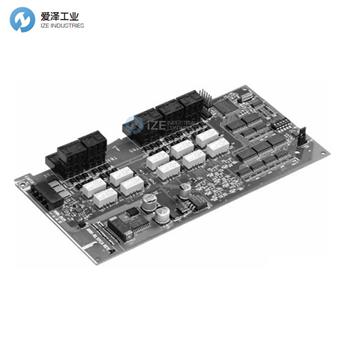

The ANN-RLY relay module provides ten (10) programmable Form-C relays when used with a compatible AUTOPULSE 542R/542D Control Panel. The ANN-RLY module may be mounted inside the AUTOPULSE 542R/542D Control Panel main circuit board chassis or in the battery area of the enclosure using optional mounting bracket Part No. 435897.
The ANN-RLY and the AUTOPULSE 542R/542D Control Panel communicate over a two-wire serial interface employing the ANN-BUS communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications.
Up to eight (8) ANN-BUS devices may be connected to the ANN-BUS of the AUTOPULSE 542R/542D Control Panel.ANN-BUS devices can be powered by an auxiliary power supply when available panel power is exceeded.
ANSUL繼電器模塊其他常用型號：
ANSUL 435358
ANSUL 437021
ANSUL 435897
ANSUL Relay Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANSUL繼電器模塊435358的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANSUL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ANSUL繼電器模塊435358技術參數及介紹
