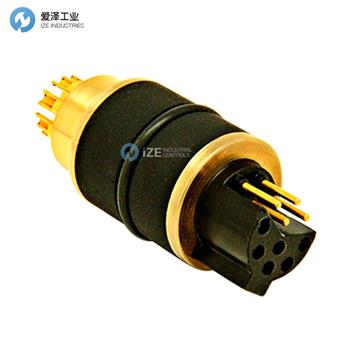

WETECHNOLOGIES水下連接器2616-4P6S-H-750產品參數
Manufacturer: | Wetechnologies, Inc (OEM) |
Part Number: | 2616-4P6S-H-750 |
Reference Number: | C10-686910-000 |
Description: | 4P/6S-HP/HT Connector |
Contact Arrangement: | 4 #20awg Pins, 6 #20awg Sockets |
Termination Style: | Solder |
Contact Plating: | Gold |
Insulating Material: | GRE |
Mating Style: | Push Pull |
Operating Pressure: | 20,000psi @ 200°C (392°F) |
Direction of Pressure: | Bi-Directional |
Oring Material: | 2-016, Viton? 90 |
Mating Connector: | 2615-6P4S-H-750 |
Trade Name: | KTK |
Country of Manufacture: | USA |
WETECHNOLOGIES水下連接器HP丨HT系列系列產品介紹
MWD/LWD
Downhole Battery Packs
Steering Tools
Porosity/Gamma Tools
隨鉆/隨鉆
井下電池組
轉向工具
孔隙率/伽馬工具

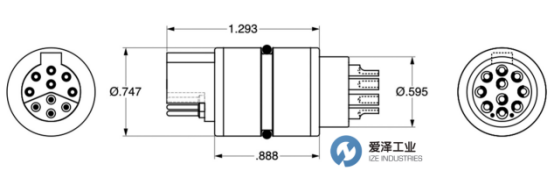

外觀尺寸圖
WETECHNOLOGIES水下連接器HP丨HT系列其他常見型號
WETECHNOLOGIES 2567-15SC-H-750
WETECHNOLOGIES 2568-15PC-H-750
WETECHNOLOGIES 2616-4P6S-H-750
WETECHNOLOGIES 2616-4P6S-H-750
WETECHNOLOGIES 2629-6P4S-M-750
WETECHNOLOGIES 2630-4P6S-M-750
WETECHNOLOGIES 3576-6P4S-H-750-NKW
WETECHNOLOGIES 3585-6P4S-H-687
WETECHNOLOGIES 3586-4P6S-H-687
WETECHNOLOGIES 3587-6P4S-M-687
WETECHNOLOGIES 3588-4P6S-M-687
WETECHNOLOGIES 3611-4P6S-H-750-NK
