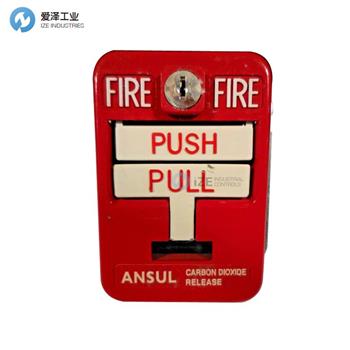

ANSUL手動啟動器428655技術參數
TECHNICAL INFORMATION conventional | |
Switch Ratings | 1A@30VDC |
Switch Type | SPST or DPST |
Terminal Size | Uo to 14 AWG |
Color | Red with raised white letters,white PUSH/PULL HANDLES with raised red letters |
Weather Proof with Weather Proof Back Box | NEMA 3R |
ANSUL手動啟動器介紹
特征
UL認證/ FM認證
批準用于ADA
雙重作用
壓鑄金屬結構
接線端子
可選的輔助觸點
嵌入式安裝在單個幫派盒上
提供表面貼裝底盒
提供防風雨后箱
高光澤紅色搪瓷表面
鍵控以匹配AUTOPULSE控制單元
應用領域
電動手動拉手站是一種經濟高效，功能齊全，未編碼的手動火災報警拉手站。 它旨在滿足安裝人員和最終用戶的多種應用需求。
拉站為AUTOPULSE控制面板提供警報啟動輸入信號。 其創新的設計，耐用的結構以及多種安裝選項使拉拔站易于安裝，維護和操作
Features
UL Listed/FM Approved
Approved for ADA
Dual action
Die-cast metal construction
Terminal block
Optional auxiliary contacts
Flush mounts on single gang box
Surface mount back box available
Weatherproof back box available
High-gloss red enamel finish
Keyed to match AUTOPULSE control units
Applications
The Electric Manual Pull Station is a cost-effective, featurepacked , non-coded manual fire alarm pull station . It was designed to meet multiple applications with the installer and end-user in mind.
The pull station provides the AUTOPULSE control panels with an alarm initiating input signal . Its innovative design ,durable construction , and multiple mounting options make the pull station simple to install , maintain , and operate

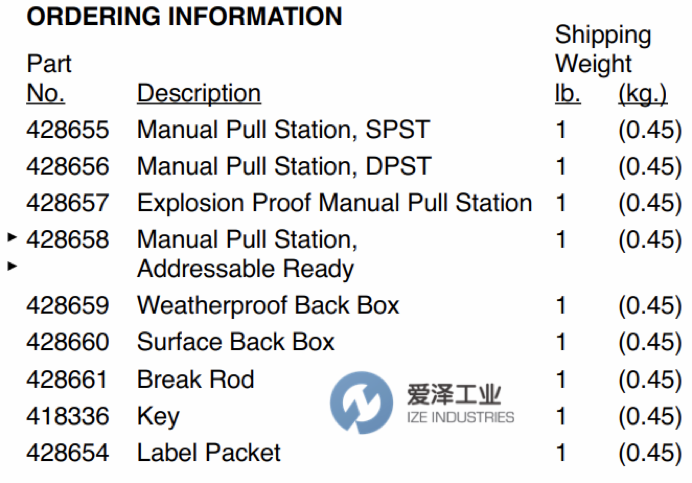

ANSUL手動啟動器選型
ANSUL手動啟動器其他常用型號：
ANSUL 428655
ANSUL 428656
ANSUL 428657
ANSUL 428658
ANSUL 428659
ANSUL 428660
ANSUL 428661
ANSUL 418336
ANSUL 428654
ANSUL NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ANSUL手動啟動器428655的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ANSUL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ANSUL手動啟動器428655介紹
