PCB耳機測試儀AEC206產品參數
Specifications | ||
PHYSICAL | ||
Height | 14.9 in | 37.8 cm |
Width | 7.9 in | 20 cm |
Cable Length | 5 ft | 1.5 m |
Electrical Connector | BNC | |
WEIGHT | ||
Test Fixture Only | 21 lb | 9.5 kg |
Case and All Components | 41 lb | 18.3 kg |
ENVIRONMENTAL | ||
Operating Temperature (Electronics) | -40 °F to 158 °F | -40 °C to 70 °C |
Operating Humidity | 0% to 90% Relative Humidity, Non-Condensing | |
ELECTRICAL | ||
Excitation Voltage | 20 VDC to 32 VDC | |
Constant Current Excitation | 2 mA to 20 mA | |
Output Bias Voltage | 10 VDC to 14 VDC | |
Impedance (Output) | < 50 Ohm | |
Output Voltage | ± 8 V | |
TEDS Compliant | Yes | |
PCB耳機測試儀AEC206產品介紹

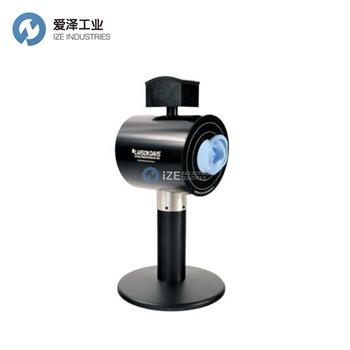

The Larson Davis Model AEC206 Binaural Test Fixture is the tool for testing supra-aural, circumaural, supra-concha, intraconcha, and insert-type headphones. Preassembled with IEC 60318-4 (711) occluded-ear simulators and TEDS compatible preamplifiers that provide electronic calibration information, the Model AEC206 is user-friendly and easy to learn. Additionally, calibration is a simple process—a custom adapter is included for the Model CAL250 acoustic calibrator or similar device.
Whether performing quality assurance testing of headphones on an assembly line or using it in the lab for R&D, Model AEC206 is an excellent choice.
Features
Ships pre-assembled and ready-to-use in a rugged case
IEC 60318-4 (711) occluded ear simulators with microphones
USB 2.0 and Wi-Fi
Includes ICP? (IEPE) preamplifiers with TEDS
Includes 4 pinnae (2 left and 2 right)
Applications
In-ear / on-ear headphone testing
Production quality assurance
Ear muff testing
Headphone R&D
Larson Davis型號AEC206雙耳測試治具是用于測試上耳式，外耳式，上耳式，內耳式和插入式耳機的工具。 AEC206型號預先與IEC 60318-4（711）咬合式耳模擬器和TEDS兼容的前置放大器（提供電子校準信息）預先組裝在一起，易于使用且易于學習。此外，校準是一個簡單的過程-包含用于CAL250型聲校準器或類似設備的自定義適配器。
無論是在流水線上進行耳機的質量保證測試，還是在實驗室中進行研發，AEC206都是一個不錯的選擇。
特征
預先裝運并準備在堅固的箱子中使用
IEC 60318-4（711）帶麥克風的封閉式耳模擬器
USB 2.0和Wi-Fi
包括帶有TEDS的ICP?（IEPE）前置放大器
包括4個pinnae（左側2個，右側2個）
應用領域
入耳式/耳掛式耳機測試
生產質量保證
耳套測試
耳機研發

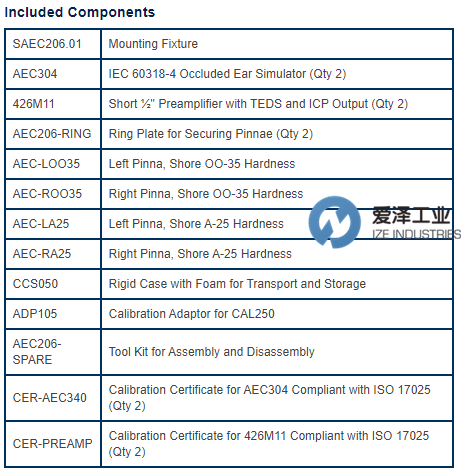

配件清單：
PCB耳機測試儀AEC206其他常見系列：
PCB AEC304
PCB 426M11
PCB AEC206-RING
PCB AEC-LOO35
PCB AEC-ROO35
PCB AEC-LA25
PCB AEC-RA25
PCB CCS050
PCB ADP105
PCB AEC206-SPARE
PCB CER-AEC340
PCB CER-PREAMP
PCB Headphone Test Fixture NEW + ORIGINAL+ ONE YEAR WARRANTY
