WETECHNOLOGIES連接器2629-6P4S-M-750+2630-4P6S-H-750產品參數
Specification | |
Manufacturer | Wetechnologies, Inc (OEM) |
Part Number | 2629-6P4S-M-750 |
Reference Number | C10-686927-000 |
Description | 6P/4S-MP/MT Connector |
Contact Arrangement | 6 #20awg Pins, 4 #20awg Sockets |
Termination Style | Solder |
Contact Plating | Gold |
Insulating Material | GRE |
Mating Style | Push Pull |
Operating Pressure | 10,000psi @ 150°C (302°F) |
Direction of Pressure | Bi-Directional |
Oring Material | 2-016, Viton? 90 |
Mating Connector | 2630-4P6S-H-750 |
Trade Name | KTK |
Country of Manufacture | USA |

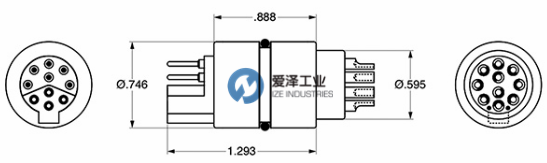

WETECHNOLOGIES連接器2629-6P4S-M-750+2630-4P6S-H-750外觀尺寸圖
WETECHNOLOGIES連接器HP丨HT系列其他常見型號
WETECHNOLOGIES 2567-15SC-H-750
WETECHNOLOGIES 2568-15PC-H-750
WETECHNOLOGIES 2615-6P4S-H-750
WETECHNOLOGIES 2616-4P6S-H-750
WETECHNOLOGIES 2629-6P4S-M-750
WETECHNOLOGIES 2630-4P6S-M-750
WETECHNOLOGIES 3576-6P4S-H-750-NKW
WETECHNOLOGIES 3585-6P4S-H-687
WETECHNOLOGIES 3586-4P6S-H-687
WETECHNOLOGIES 3587-6P4S-M-687
WETECHNOLOGIES 3588-4P6S-M-687
WETECHNOLOGIES 3611-4P6S-H-750-NK
WETECHNOLOGIES connectors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WETECHNOLOGIES連接器2629-6P4S-M-750+2630-4P6S-H-750的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WETECHNOLOGIES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
