SIGNALLINE探測器FT-68-R技術參數
Model | Signaline FT-68-R |
Alarm temperature | 68°C (155°F) |
Max ambient temp. | 45°C (113°F) |
Conductor resistance | 0.10/M or 0.029Q/FT @20°C |
Max voltage | 42Vdc or 30Vac |
Dielectric withstand (UL) | 500Vdc |
Tensile strength | 1700 N/mm2 |
Minimum bend radius | 75mm |
Overall diameter | 4.5mm |
Weight | 16kg/500M |
Outer sheath material | Chemical resistant nylon |
Colour | Black |
Approvals | UL, cUL |
SIGNALLINE探測器FT-68-R介紹
Signaline FT-68-R 定溫線性熱探測器
報警溫度：68°C；外護套：耐化學腐蝕黑色尼龍
Signaline 固定溫度線性熱探測器 (Signaline FT) 可檢測其長度上任何位置的熱量積聚。當電纜長度上的任何一點達到預定溫度時，就會啟動警報。Signaline FT 有四種不同的溫度設置和兩種外殼選項，使 Signaline FT 適用于非常廣泛的應用

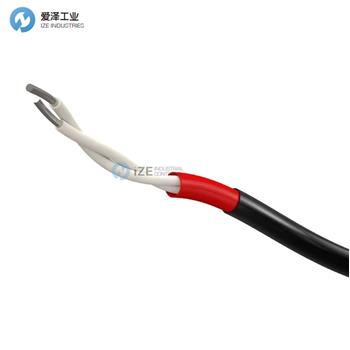

Signaline FT-68-R Fixed Temperature Linear Heat Detector
Alarm Temperature: 68°C; Outer Sheath: Chemical Resistant Black Nylon
Signaline Fixed Temperature Linear Heat Detector (Signaline FT) detects a build up of heat anywhere along its length. When any point along the length of the cable reaches a predetermined temperature an alarm is initiated. Signaline FT is available in four different temperature settings and two outer cover options making the Signaline FT suitable for use in a very wide range of applications
SIGNALLINE探測器其他常用型號：
SIGNALLINE FT-68
SIGNALLINE FT-88
SIGNALLINE FT-105
SIGNALLINE FT-68-R
SIGNALLINE FT-88-R
SIGNALLINE FT-105-R
SIGNALLINE FT-185-R
SIGNALLINE FT-230-X
SIGNALLINE Optical Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
