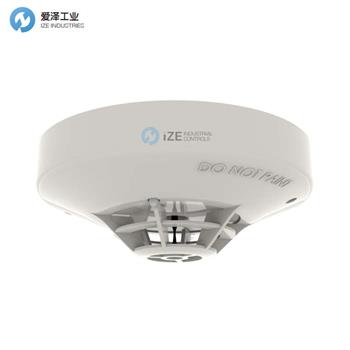

HOCHIKI熱探測器DCD-AE3技術參數
Specification | |
Ordering codes | DCD-AE3 - Ivory / DCD-AE3(WHT) - White |
Operating voltage | 9.5 – 30 VDC |
Quiescent current | 35 μA |
Maximum current in alarm (typical) | 40 mA |
Remote indicator drive | 20 mA (max) / 9.5-14 mA (typ) |
IP rating | IP63 |
Maximum humidity | 95% RH - Non condensing (at 40°C) |
Operating Temperature Range | -10 °C to +50 °C |
Operating Temperature Range | -30 °C to +70 °C |
Colour / Case material | Ivory or White / Polycarbonate |
Compatible bases | YBN-R6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
Base fixing centres (mm) | 48 ~ 74 |
Weight (g) / Dimensions (mm) | 76 / ? 100 x H 38 |
Approvals to (EN54:2000) Class A1 & A1R | LPCB |
HOCHIKI熱探測器DCD-AE3產品介紹
DCD-AE3是一款具有 60°C 固定溫度元件的上升率熱探測器，使用熱敏電阻和線性化電路來提供精確的線性響應熱探測器。
DCD-AE3非常適合在中等環境溫度的情況下使用，例如干燥室或由于存在蒸汽或烹飪煙霧而不適合使用煙霧探測器的地方（例如廚房）。
DCD-AE3受到一系列針對不同應用的底座的支持，并且大多數傳統系統都支持這些底座。第三個端子提供遠程指示器輸出。
? 電子線性熱檢測
? 遠程指示器輸出
? 寬電壓范圍（9.5 ~ 30 VDC）
? 雙火 LED 允許 360° 觀看
? 安裝底座范圍
? 經 LPCB 和 VdS 批準
? 另有白色可選。
DCD-AE3 is a Rate of Rise Heat Detector with a 60°C fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector.
DCD-AE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
DCD-AE3 is supported by a range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.
? Electronic linear heat detection
? Remote Indicator output
? Wide voltage range (9.5 ~ 30 VDC)
? Twin fire LEDs allow 360° viewing
? Range of mounting bases
? Approved by LPCB & VdS
? Also available in white.
HOCHIKI熱探測器CDX系列其他常用型號：
HOCHIKI DCD-AE3
HOCHIKI DCD-CE3
HOCHIKI DFJ-AE3
HOCHIKI DFJ-CE3
HOCHIKI DRD-E
HOCHIKI SOC-E3N
HOCHIKI DFG-60BLKJ
HOCHIKI DRD-E
