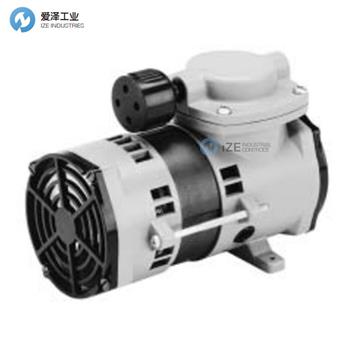

THOMAS泵107CCD18規格描述
MODEL NUMBER | 107CCD18 |
HEAD CONFIGURATION | Pressure/Vacuum |
STROKE | .180 Inches |
PRESSURE | Flow @ 230v/220v |
CFM @ PSI | LPM @ bar |
CFM | LPM |
.65 / .55 | 18.4 / 15.6C |
.51 / .43 | 13.0 / 11.0 |
.40 / .34 | 8.3 / 7.1 |
.28 / .24 | 5.2 / 4.4 |
.20 / .17 | 3.1 / 2.5 |
15 / .13 | |
.10 / .08 | |
MAX. CONTINUOUS PRESSURE | 20 PSI 1.4 bar |
MAX. INTERMITTENT PRESSURE | 30 PSI 2.1 bar |
VACUUM | Flow @ 230v/220v |
CFM | LPM |
.65 / .55 | 18.4 / 15.6 |
.48 / .40 | 15.6 / 13.1 |
.32 / .27 | 12.8 / 10.7 |
.18 / .15 | 7.6 / 6.4 |
3.0 / 2.4 | |
MAX. VACUUM | 22.0" hg -746 mbar |
MAX. AMBIENT AIR TEMP. | 104? F 40°C |
MIN. AMBIENT START TEMP. | 50? F 10°C |
MAX. RESTART PRESSURE | 0 PSI 0 bar |
MAX. RESTART VACUUM | 0" hg 0 mbar |
MOTOR VOLTAGE/FREQUENCY | 230/60/1-220/50/1 |
MOTOR TYPE | Shaded Pole |
CURRENT AT RATED LOAD (AMPS) | .8 / 1.0 |
POWER AT RATED LOAD (WATTS) | 100 / 120 |
STARTING CURRENT (LOCKED ROTOR, AMPS) | 1.2 |
MIN. FULL LOAD SPEED (RPM) | 1620 / 1220 |
THERMAL PROTECTOR | Yes |
NET WEIGHT | 5.1 lbs. 2.3 Kg |
THOMAS泵107系列介紹
Capacity up to 1.4 cfm / 39.6 l/min
Vacuum to 22.0 in.Hg / -750 mbar
Pressure to 35 psi / 2.4 bar
Features & Benefits
Oil-less operation (Clean air stream, less maintenance)
Permanently lubricated bearings (Optimum life)
Stainless Steel valves (Optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components (Strong, lightweight, durable)
Dynamically balanced (Low operating vibration)
Durable diaphragm design (Optimum life)
Field service capability ( Maximum return on investment)
Thermally Protected motor (Fail-safe operation) AC Series
Designed and tested per Agency standards (Fail-safe operation)
Inlet filter/exhaust muffler (Quiet, clean operation)
RoHS compliant (Green, eco-friendly)
容量高達 1.4 cfm / 39.6 l/min
真空至 22.0 英寸汞柱 / -750 毫巴
壓力達到 35 psi / 2.4 bar
特點與優勢
無油操作（清潔氣流，減少維護）
永久潤滑軸承（最佳壽命）
不銹鋼閥門（最佳壽命、性能一致、耐腐蝕）
壓鑄鋁組件（堅固、輕便、耐用）
動態平衡（低運行振動）
耐用的隔膜設計（最佳壽命）
現場服務能力（最大投資回報）
熱保護電機（故障安全操作）AC 系列
按照機構標準設計和測試（故障安全操作）
進氣過濾器/排氣消聲器（安靜、清潔操作）
符合 RoHS（綠色、環保）
THOMAS泵其他常用型號：
THOMAS 107CAB18
THOMAS 107CEF18
THOMAS 107CCD18
THOMAS 107CGH18
THOMAS 107CDC20
THOMAS 107CAB14
THOMAS 107CEF14
THOMAS 107CEF20
THOMAS 107CCD14
THOMAS 107CGH14
THOMAS 107CGH20
THOMAS 107CDC/C20
THOMAS pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于THOMAS泵107CCD18的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for THOMAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
