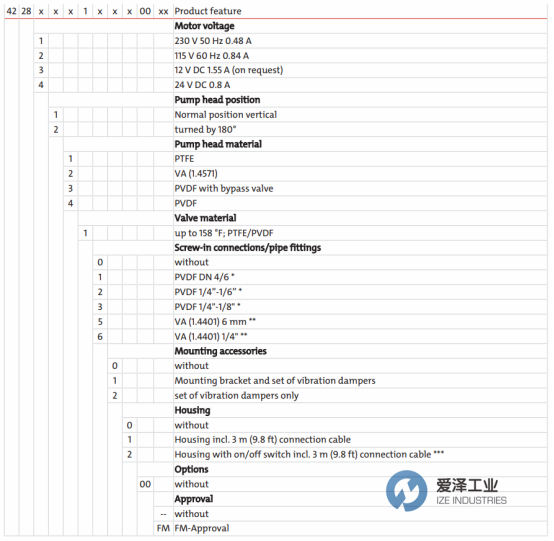

BUHLER采樣泵P1.1E 4228122101100技術參數
Motor voltage | 230 V 50 Hz 0.48 A |
Pump head position | turned by 180° |
Pump head material | VA (1.4571) |
Valve material | up to 158 °F; PTFE/PVDF |
Screw-in connections/pipe fittings | without |
Mounting accessories | Mounting bracket and set of vibration dampers |
Housing | Housing incl. 3 m (9.8 ft) connection cable |
Options | without |
BUHLER采樣泵介紹
為了化工行業、石化或生化領域內的工藝實現或排放監控，氣體分析是安全且高效運行設備的關鍵。許多在上述領域中采用的分析方法需要提取且預處理樣品氣體。
樣氣泵負責將樣氣從采樣點輸送至預處理系統。此依應用開發的泵的核心是一塊由PTFE制成的一體成型的波紋管。與同樣一體成型的泵頭相結合，本解決方案提供了對極腐蝕性氣體的高耐性。通過轉動泵頭，可輸送含有冷凝物的氣體。
Gas analysis is key for safe and efficient system operation in the chemical industry, petrochemistry or biochemistry. Many of the analysis processes used in these fields require sample gas extraction and conditioning.

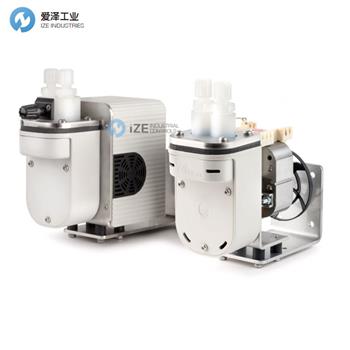

Sample gas pumps convey the sample gas from the sampling point to the conditioning system. The main item in these pumps designed specifically for the application is the PTFE single-piece bellow. Combined with the pump head, also single-piece, this solution provides high resistance against particularly aggressive sample gas. Turning the pump head allows gas with condensate to be conveyed without a problem.
BUHLER采樣泵選型
BUHLER采樣泵其他常用型號：
BUHLER P1.1
BUHLER P1.1E
BUHLER P1.2
BUHLER P1.2E
