BUHLER取樣氣泵4261711199000技術參數
Code | 4261711199000 |
Product characteristic | 42 |
Base model | 61=P2.2 Atex 400 L/h (direct operation without intermediate flange) |
Motor voltage | 7=230 V 50/60 Hz; 1,09/1,17 A |
Pump head position | 1=Normal position vertical |
Pump head material | 1=PTFE |
Valve material | 1=up to 100 °C; PTFE / PVDF * |
Screw-in connections (depending on pump body) | 9=PTFE Pump body：DN 4/6 (Standard)；Stainless steel pump body：6 mm (Standard) |
Mounting accessories | 9=incl. mounting bracket and bumper |

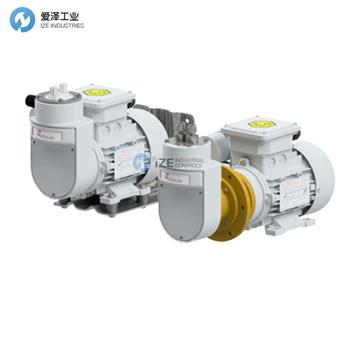

BUHLER取樣氣泵P2.x ATEX系列介紹
簡單、堅固的設置
易于更換閥門
單片波紋管
用于腐蝕性樣氣
輸送帶有冷凝液的樣氣
長壽
帶可選可調旁通閥的泵頭
用于PTFE和VA泵體的旁通閥
低噪音排放
帶安裝支架
Easy, sturdy set-up
Easy to replace valves
Single-piece bellows
For aggressive sample gas
Conveys sample gas with condensate
Long life
Pump head with optional adjustable bypass valve
Bypass valve for PTFE and VA pump body
Low noise emission
With mounting bracket

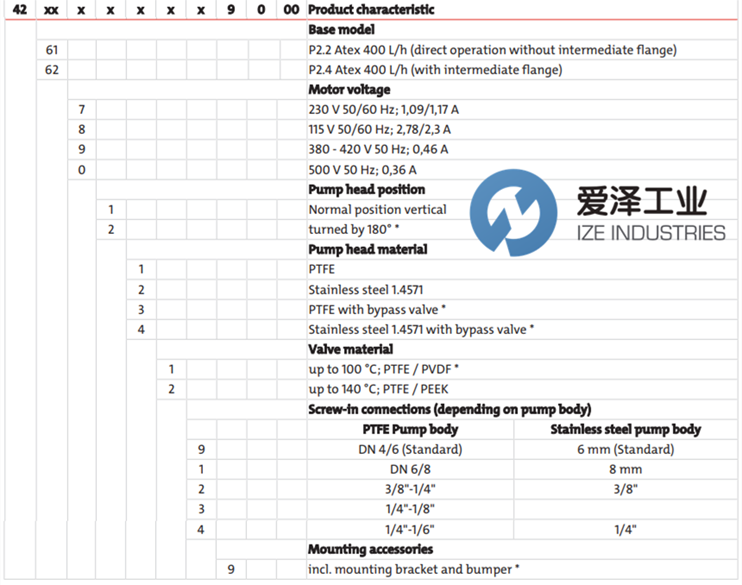

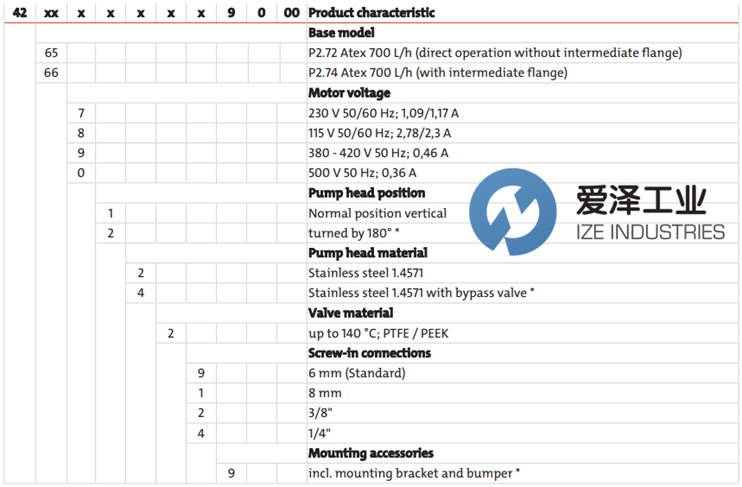

BUHLER取樣氣泵P2.x ATEX系列選型
BUHLER取樣氣泵P2.x ATEX系列其他常用型號：
BUHLER 4261711199000
BUHLER 456222611000
BUHLER 4261121299000
BUHLER 4261113249000
BUHLER 4261713249000
BUHLER 4261721299000
BUHLER 4261711299000
BUHLER 4256121199000
