DOMEL真空電機463系列技術參數
Technical data | |
Diameter | 110 mm, 120 mm |
Weight | 900 g to 1300 g? |
Number of stages | 1 |
Power | 500 W to 2100 W |
Output power | ?250 W to 800 W |
Efficiency | up to 50% |
Flow rate | from 46 dm3/s to 60 dm3/s? |
Positive/negative pressure | from 24 kPa to 33 kPa |
Voltage | 12–48 V,?100–120 V or 220–240 V? |
Lifetime | up to 1000 h |

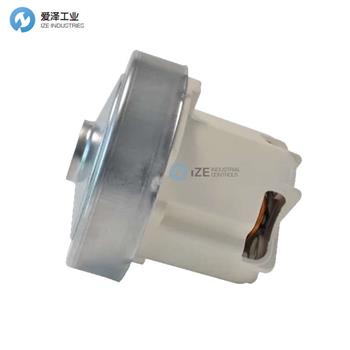

DOMEL真空電機463系列介紹
463 系列真空電機包括用于干燥應用的直流電機。這些吸塵器電機安裝在比金屬板更輕的 BMC 外殼中，而電機結構可實現更高的效率。
它們是在高度自動化的生產線上制造的。控制設備在組裝過程期間和結束時檢查每個電機。
463系列的特點是高品質和高能效。所有這些優勢使新系列真空電機成為業內更具成本效益、用戶友好且節能的產品。463系列電機額定功率高達2100W，可使用各種電壓，直徑有110毫米和120毫米。
The 463 series of vacuum motors includes through flow motors for dry applications. These vacuum cleaner motors are installed into a BMC housing which is lighter than sheet metal, while the motor structure enables higher efficiency.
They are manufactured on highly automated production lines. Advanced control devices inspect every motor both during and at the end of the assembly process.
The 463 series is characterised by high quality and energy efficiency. All these advantages make the new series of vacuum motors the most cost-effective, user friendly and energy efficient in the industry. The 463 series motors have a power rating of up to 2100 W, can be used with various voltages, and have a diameter of 110 mm and 120 mm.
DOMEL真空電機463系列其他常用型號：
DOMEL 463.3.401
DOMEL 463.3.405
DOMEL 463.3.402-29
DOMEL 463.3.404-13
DOMEL 463.3.402-7
DOMEL 463.3.270-40
DOMEL 463.3.270-51
DOMEL 463.3.270-33
DOMEL 463.3.203-19
DOMEL 463.3.270
DOMEL 463.3.270-20
DOMEL 463.3.270-48
DOMEL 463.3.203-10 .
DOMEL 463.3.403-13
DOMEL 463.3.203-23
DOMEL 463.3.605-2 276553
