VDH濕度傳感器RH95-2參數介紹
Technical data: | |
Type | RH 95(T)-2 |
Housing | Stainless steel case 080 x 35mm, mounting flange 01 10mm |
Connections | Via tulle on the side or back |
Nutrition | 10/24 Vdc (-5/+ 10%) |
Reach | 10-95% RH at 0/+60°C |
Temperature sensor | 3-conductor Pt-100 according to DIN 43760 |
RH output | 0/+1 Vdc (0/+ 100% RH), Rb min.1 MΩ |
Accuracy | 30-80%RH±3%RH |
temp. coffcient | ±0.1%RH/°C |
VDH濕度傳感器介紹

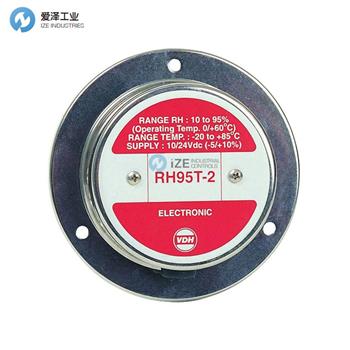

The RH 95-2 is an electronic (smd) relative humidity sensor for various applications in refrigeration and air conditioning technology.
The sensor is housed in a stainless steel housing with a grommet for cable entry both below and at the rear. The housing is perforated to ensure sufficient air flow.
The operating range of the sensor is between 10 and 95% RH at temperatures between 0°C and +60°C.
The RH95-2 sensor is also available with a built-in Pt-100 temperature sensor as the RH 95T-2.
The electronic components are protected against the effects of moisture by means of a dip lacquer treatment.
RH 95-2 是一種電子 (smd) 相對濕度傳感器，適用于制冷和空調技術中的各種應用。
傳感器安裝在不銹鋼外殼中，外殼下方和后部均帶有用于電纜入口的索環。 外殼穿孔以確保足夠的空氣流通。
在 0°C 至 +60°C 的溫度下，傳感器的工作范圍為 10% 至 95% RH。
RH95-2 傳感器也可與 RH 95T-2 一樣配備內置 Pt-100 溫度傳感器。
通過浸漆處理，保護電子元件免受濕氣的影響。
VDH濕度傳感器其他常用型號：
VDH RH 95-2
VDH RH 95T-2
