BELIMO電位計P140A技術參數
Electrical data | |
Nominal resistance | 140 ? |
Tolerance | ±5% |
Loading capacity | Max. 1 W |
Linearity | ±2% |
Resolution | Min. 1% |
Residual resistance | Max. 5% on both sides |
Connection potentiometer | Cable 1 m, 3 x 0.75 mm2 halogen-free |
Safety data | |
Protection class IEC/EN | III, Safety Extra-Low Voltage (SELV) |
Power source UL | Class 2 Supply |
Degree of protection IEC/EN | IP54 |
EMC | CE according to 2014/30/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Certification UL | cULus according to UL60730-1A, UL60730-2-14 and CAN/CSA E60730-1 |
Mode of operation | Type 1 |
Rated impulse voltage supply | 0.8 kV |
Pollution degree | 3 |
Ambient temperature | -30...50°C |
Storage temperature | -40...80°C |
Ambient humidity | Max. 95% RH, non-condensing |
Servicing | maintenance-free |
Weight | |
Weight | 0.19 kg |
BELIMO電位計P140A產品介紹

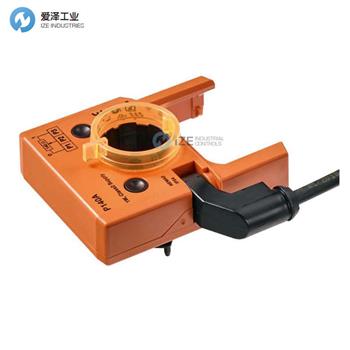

用于風門執行器和旋轉執行器的電位計
? 標稱電阻 140 Ω
Feedback potentiometer for damper actuators and rotary actuators
? Nominal resistance 140 ?
BELIMO電位計其他常用型號：
BELIMO P1000A-F
BELIMO P200A-F
BELIMO P10000A
BELIMO P1000A
BELIMO P140A
BELIMO P200A
BELIMO P5000A
BELIMO P10000A GR
BELIMO P140A GR
BELIMO P2800A
BELIMO P2800A GR
BELIMO Feedback potentiometer NEW + ORIGINAL+ ONE YEAR WARRANTY
