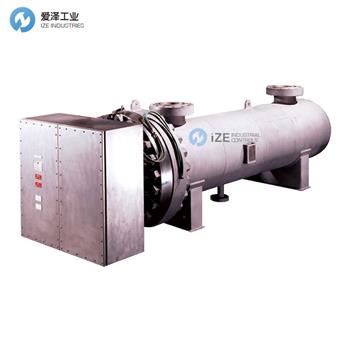

EXHEAT換熱器ISES技術參數
Certification | ATEX / IECEx II 2 G | ||
Vessel Design Codes | PED Compliant | PD 5500 2000 Cat 1 | AS 1210 |
Vessel Materials | Carbon steel | Low temperature steel | Stainless steel |
Elements | Manufactured from 80/20 NiCr resistance wire with high purity compacted magnesium oxide powder sheathed within corrosion/erosion resistant tube, eg: | ||
Incoloy 800/825 | Inconel 600/625 | Titanium | |
Element sheath available in welded or seamless tube up to 1.6mm thick | |||
Internals | Elements are supported in a segmental or rod type baffle assembly to prevent flow-induced vibration and hot spots, generally complying with TEMA standards | ||
Element to Tubesheet | Generally, elements are sealed into the flange by ‘Bite’ type couplings which provide a 100% seal at pressures up to 400 barg and give the opportunity to replace individual elements on site | ||
Terminal Box | Manufactured from 316L stainless steel | ||
Voltage | Suitable for voltages up to 690V | ||
EXHEAT換熱器ISES介紹
通過 ATEX、IECEx 或 CSA 標準認證
接線盒通過 IP67 或 4X 型防風雨認證
溫度等級 T1 到 T6
高達5000kW
元件經過特殊密封以防止水分進入
元件可在現場單獨更換，無需特殊工具
適合并經認證可用于 -60°C 至 +60°C 的高環境溫度
如果需要，安裝防冷凝加熱器
Certified to ATEX, IECEx or CSA standards
Terminal box is certified weatherproof to IP67 or Type 4X
Temperature classifications T1 to T6
Up to 5000kW
Elements are specially sealed to prevent moisture ingress
Elements are individually replaceable on site without the need for special tools
Suitable and certified for use in high ambient temperatures of -60°C to +60°C
Anti-condensation heaters fitted, if required

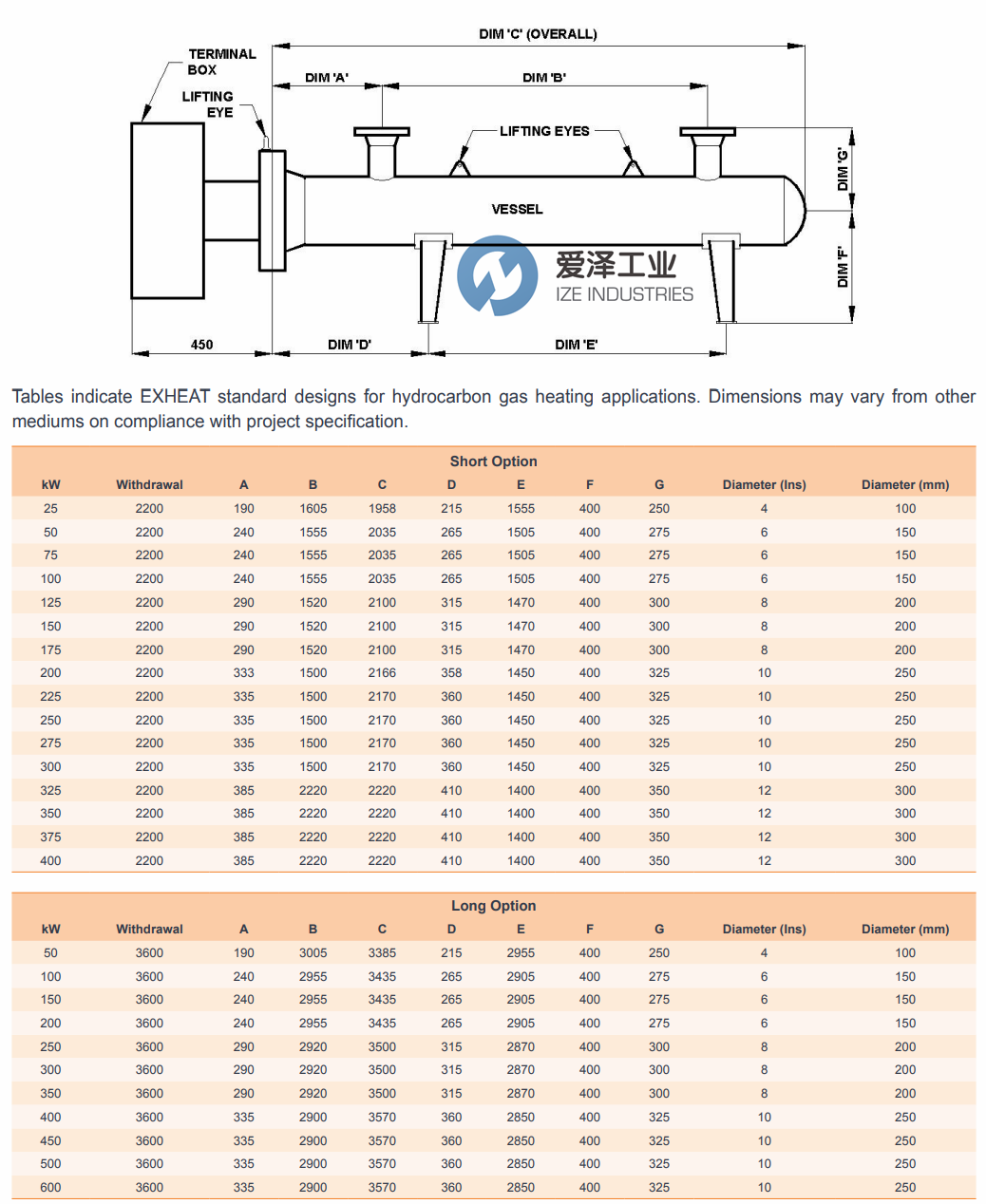

EXHEAT換熱器ISES選型
EXHEAT換熱器其他常用型號：
EXHEAT ISES
EXHEAT PEGH
EXHEAT PEOH
EXHEAT BFP
EXHEAT FP
EXHEAT Heat Exchanger NEW + ORIGINAL+ ONE YEAR WARRANTY
