HONEYWELL風閥執行器CN05 / CN10系列技術參數
SPECIFICATIONS | |
Supply voltage | 24 Vac/dc -15%/+20%, 50/60 Hz |
Nominal voltage | 24 Vac/dc, 50/60 Hz |
Power consumption | |
CN7505 | 5 VA / 2 W |
CN7510 | 5 VA / 2 W |
Control signal | |
Modulating | (0)2...10 Vdc |
Floating/2-Position | 24 Vac/dc |
Ambient limits | |
Ambient operating limits | -5...+140 °F (-20...+60 °C) |
Ambient storage limits | -22...+176 °F (-30...+80 °C) |
Relative humidity | 5...95%, non-condensing |
Safety | |
Protection standard | IP54 |
Protection class | II as per EN 60730-1 |
Overvoltage category | II |
Lifetime | |
Full strokes | 60000 |
Repositions | 1.5 million |
Mounting | |
Round damper shaft | 3/8 in…5/8 in. |
Square damper shaft | 1/4 in…1/2 in.; 45° steps |
Shaft length | min. 1-5/8 in. |
Torque rating | 44 lb-in. (5Nm) / 88 lb-in. (10Nm) |
Rotation stroke | 95° + 3° |
Weight (without cables) | 1.0 lbs. |
Noise rating | 35 dB(A) max. at 1 m |
Certification | CE & UL |
HONEYWELL風閥執行器CN05 / CN10系列介紹
這種非彈簧復位直聯式風門執行器提供調節和浮動/2 位控制，用于：
? 空氣阻尼器，
? VAV 裝置，
? 空氣處理器，
? 通風瓣，
? 百葉窗
特征
? 用于手動調節的離合器
? 可調節的機械末端限制
? 用于直接接線的可拆卸檢修蓋
? 可在任何方向安裝
? 用于選擇調制或浮動/2 位控制的功能選擇開關
This non-spring return direct-coupled damper actuator provides modulating and floating/2-position control for:
? air dampers,
? VAV units,
? air handlers,
? ventilation flaps,
? louvers
FEATURES
? Declutch for manual adjustment
? Adjustable mechanical end limits
? Removable access cover for direct wiring
? Mountable in any orientation
? Function selection switch for selecting modulating or floating/2-position control
HONEYWELL風閥執行器CN05 / CN10系列其他常用型號：
HONEYWELL CN7505A2001

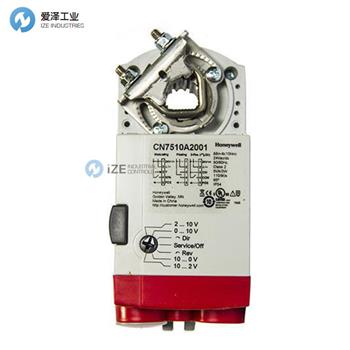

HONEYWELL CN7510A2001
HONEYWELL CN7510A2209
