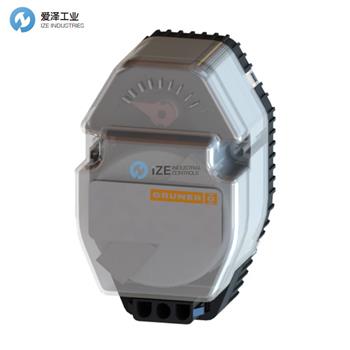

GRUNER風閥執行器237D-230-26技術參數
Technical data | |
Nominal voltage | 230 VAC (50/60 Hz) |
Nominal voltage range | 203...263 VAC |
Power consuption Motor (Motion) | 3,5 W |
Control | 2 Point |
Feedback signal | switching output |
limit switch | 1 x SPST (Ag) supply voltage |
Connection Motor | Tyco - AMP universal MATE-N-LOK Nr.: 350766-1 |
Functional data | |
Synchronised speed | ± 5% |
Torque Motor | > 26 Ncm |
Direction of rotation | Motor : clockwise |
Manual override | Not |
Angle of rotation | 90° (+ 30° excess movement) |
Running time Motor | 12 s / 90° |
Sound power level Motor | < 35 dB(A) |
Damper coupling | see on Technical Drawing |
Position indication | mechanical with pointer |
Service life | 400.000 complete cycles |
Safety | |
Protection class | II (double insulation) |
Degree of protection | IP 20 (without plug) |
EMC | CE (2004/108/EG) |
Mode of operation | Typ 1.AA B (EN60730-1) |
Rated impulse voltage | 4 kV (EN60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature Normal operation | 0°C...+60°C |
Storage temperature | -20°C...+80°C |
Ambient humidity | 5...95% r.F., |
Maintenance | maintenance free |
Dimensions | 90 x 56 x 49 mm |
Weight | ca. 220 g |
GRUNER風閥執行器237D-230-26介紹
彈簧復位執行器,用于調節和調節空調和通風中的風門和閥門。
扭力馬達:26 Ncm
扭力彈簧:12 Ncm
標稱電壓:230 VAC
控制:2-點
反饋信號:1x開關量輸出
阻尼器聯軸器:0,2 平方米
Spring-return Actuator for adjusting and regulating dampers and valves in air conditioning and ventilation.
Torque Motor:26 Ncm
Torque Spring:12 Ncm
Nominal Voltage:230 VAC
Control:2- Point
feedback signal:1x switching output
Damper coupling:bis ca. 0,2 m2
GRUNER風閥執行器237D系列其他常用型號:
GRUNER 237D-024-26
GRUNER 237D-230-26
GRUNER 237D-024-50
GRUNER 237D-230-50
GRUNER SPRING RETURN ACTUATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRUNER風閥執行器237D-230-26的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for GRUNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GRUNER風閥執行器237D-230-26介紹及技術參數
