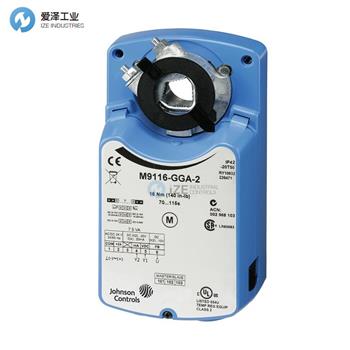

JOHNSON ELECTRIC風閥執行器M9116-AGA-2技術參數
M9116-AGA-2 | |
SHORT DESCRIPTION | Floating, Electric Non-Spring Return, 140 lb-in, 6.5VA, 70 - 115 Seconds Rotation Time |
APPLICATIONS | For Positioning Return Air or Exhaust Dampers, Controlling Face and Bypass Dampers, Positioning Blades for Variable Volume Fans, Positioning VF4000 and VF5000 Series Butterfly Valves, and Positioning VG1000 Series Ball Valves and VG7000 Series Globe Valve |
FAIL SAFE | Non-Spring Return |
CONNECTION | Electrical Connection: Screw Terminals for 22-14 AWG; Maximum of Two 18, 20, or 22 AWG per Terminal, Mechanical Connection: 3/8 - 3/4" (10 - 20mm) diameter Round Shaft or 3/8 - 5/8" (10 - 16mm) Square Shaft 1" (25.4mm) diameter Jackshaft With M9000-154 Co |
DAMPER ACTUATOR TORQUE | 140 lb-in |
CONTROL TYPE | Floating |
ENCLOSURE TYPE | NEMA 2 |
POWER RATING | 12.5 VA |
DIMENSIONS | 2.68" x 4.2" x 6" |
VOLTAGE | 20 - 30 VAC, 24 VDC |
FREQUENCY | 50 - 400 Hz |
AMPERAGE RATING | 5 A |
INCLUDES | Anti Rotation Bracket |
USED WITH | Dampers and Valves |
MOUNTING OPTIONS | Direct Mount |
MAX TEMPERATURE | -4 to 122 |
JOHNSON ELECTRIC風閥執行器M91系列介紹
M91xx系列包括M9116，M9124和M9132。所有這些直接安裝式電動執行器均使用24 V AC / DC電源供電。M91xx執行器可與開/關，浮動，比例或電阻控制器一起使用。這些雙向執行器不需要阻尼器聯動，可以輕松地安裝在直徑最大為3/4英寸（20毫米）的圓軸或最大直徑為5/8英寸（16毫米）的方軸的阻尼器上?？梢詫⑺鼈冎苯踊蜻h(yuǎn)程安裝到風門上，或使用M9000-5xx閥聯動套件之一安裝到閥上。
單個M91xx型號可提供高達280磅·英寸（32牛·米）的扭矩。串聯的兩個-AGx，-GGx或-HGx型號提供兩倍的扭矩或560 lb·in（64 N·m）。旋轉角度可在0至90°的范圍內以5度為增量進行機械調節。集成的輔助開關可用于指示終點位置或在所選旋轉范圍內的任何角度執行開關功能。位置反饋可通過開關，電位計或DC 0（2）至10 V信號獲得。
The M91xx Series includes M9116, M9124, and M9132 models. All of these direct-mount electric actuators operate on AC/DC 24 V power. The M91xx actuators are available for use with on/off, floating, proportional, or resistive controllers. These bidirectional actuators do not require a damper linkage, and are easily installed on a damper with a round shaft up to a 3/4 in. (20 mm) in diameter or a square shaft up to 5/8 in. (16 mm).They may be direct or remote mounted to a damper, or mounted to a valve using one of the M9000-5xx Valve Linkage Kits.
A single M91xx model delivers up to 280 lb·in (32 N·m) of torque. Two -AGx, -GGx, or -HGx models in tandem deliver twice the torque or 560 lb·in (64 N·m). The angle of rotation is mechanically adjustable from 0 to 90° in.5-degree increments. Integral auxiliary switches are available to indicate end-stop position or to perform switching functions at any angle within the selected rotation range. Position feedback is available through switches, a potentiometer, or a DC 0(2) to 10 V signal.
JOHNSON ELECTRIC風閥執行器M9116系列其他常用型號：
JOHNSON ELECTRIC M9116-AGA-2
JOHNSON ELECTRIC M9116-AGC-2
JOHNSON ELECTRIC M9116-AGD-2
JOHNSON ELECTRIC M9116-AGE-2
JOHNSON ELECTRIC M9116-GGA-2
JOHNSON ELECTRIC M9116-GGC-2
JOHNSON ELECTRIC M9116-HGA-2
JOHNSON ELECTRIC M9116-HGC-2
JOHNSON ELECTRIC M9116-JGA-2
JOHNSON ELECTRIC M9116-JGC-2
JOHNSON ELECTRIC Damper actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于JOHNSON ELECTRIC風閥執行器M9116-AGA-2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for JOHNSON ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
JOHNSON ELECTRIC風閥執行器M9116-AGA-2參數規格
