SIEMENS執行器SQM1/SQM2系列技術參數
General actuator data | |
Operation voltage | AC 220...240V, 50 Hz –15 % / +10 % |
Switching capacity of end and auxiliary switches | 10 (3) A, AC 24...250 V |
Positioning angle | up to 160° (scale range) |
Mounting position | optional |
Safety class | I |
Degree of protection | IP 54, DIN 40050 (at provided design of cable entry or fastening element for not used holes) |
Cable entry M16 and M20 | for 2 x M16 x 1.5 and 2 x M20 x 1.5 |
Weight | approx. 1.7 kg |
Actuator motor | synchronous motor |
Power consumption | 9 VA |
Environmental conditions | |
Storage | DIN EN 60 721-3-1 |
Climatic conditions | class 1K3 |
Mechanical conditions | class 1M2 |
Temperature range | ﹣20...+70 °C |
Humidity | < 95 % r.F. |
Transport | DIN EN 60 721-3-2 |
Climatic conditions | class 2K2 |
Mechanical conditions | class 2M2 |
Temperature range | ﹣50...+60 °C |
Humidity | < 95 % r.h. |
Operation | DIN EN 60 721-3-3 |
Climatic conditions | class 3K5 |
Mechanical conditions | class 3M2 |
Temperature range | ﹣20...+60 °C |
Humidity | < 95 % r.h. |
SIEMENS執行器SQM1/SQM2系列介紹
外罩
? 外殼由抗沖擊、耐熱塑料所制。蓋板顏色：深灰色
? 傳動機構箱體設計為鋁壓鑄件，并配有帶 4 個螺紋孔的電纜填塞接頭
執行器
? 可逆轉、防卡同步電動機
動作點調節
? 通過可旋轉的凸輪盤
? 凸輪盤旁邊的刻度指示動作點的角度位置
? 可用手、隨附的弧形扳手，或類似輔助工具調節凸輪
位置指示器
? 內部：刻度在傳動機構側的凸輪滾筒始端
? 只有 SQM21：有一個從外部可以看到的位置指示器
連接技術
? 螺紋連接
傳動機構
? 減速齒輪設計為配有自潤滑式的燒結青銅軸承，因此不需要保養費用
驅動軸
? 一側牢固地安裝在執行器正面
安裝和固定
? 執行器正面作為支承面
? 使用 3 個盲孔和 M5 內螺紋進行固定
Housing
? The actuator’s cover is made of impact-proof and heat-resistant plastic.Color of cover: Dark-grey
? The housing of the gear train in made of die-cast aluminium and has 4 threaded holes for cable glands
Actuator
? Reversible, locking-proof synchronous motor
Adjustment of switching points
? With adjustable cams
? Setting scales beside the cams give the switching point’s angular position
? Cams can be adjusted manually, either with the enclosed hook spanner or tool
Position indicator
? Internally: Scale at the beginning of the cam stack on the gear train side
? Only SQM21...: Equipped with position indicator visible from outside
Electrical connections
? Screw terminals
Gear train
? The reduction gearing has self-lubricating sinter-bronze bearings and requires no maintenance
Drive shaft
? Ready fitted to the front of the gear train
Mounting and fixing
? Gear train front is used as the mounting surface
? Fixing by means of 3 threaded holes with inside thread M5
SIEMENS執行器SQM1/SQM2系列選型

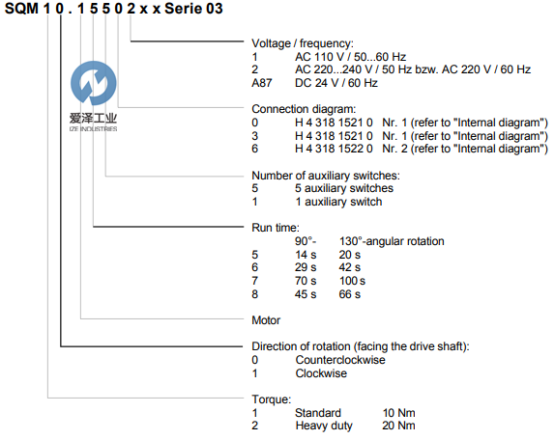

SIEMENS執行器SQM1/SQM2系列其他常用型號：
SIEMENS SQM10.15502
SIEMENS SQM10.15561
SIEMENS SQM10.15562
SIEMENS SQM10.16102
SIEMENS SQM10.16501
SIEMENS SQM10.16502
SIEMENS SQM10.16532
SIEMENS SQM10.16561
SIEMENS SQM10.16562
SIEMENS SQM10.17502
SIEMENS SQM11.15502
SIEMENS SQM11.15562
SIEMENS SQM11.16501
SIEMENS SQM11.16502
SIEMENS SQM20.16502
SIEMENS SQM20.18501
SIEMENS SQM20.18502
SIEMENS SQM21.16502
SIEMENS SQM21.18501
SIEMENS SQM21.18502
