VAISALA溫濕度變送器HMT330系列技術參數
Technical Data | |
Relative Humidity | |
Measurement range | 0 … 100 %RH |
Accuracy 1) 2) | |
at +15 … +25 °C (59 … +77 °F) | ±1 %RH (0 … 90 %) |
±1.7 %RH (90 … 100 %RH) | |
at ?20 … +40 °C (?4 … +104 °F) | ±(1.0 + 0.008 × reading) %RH |
at ?40 … +180 °C (?40 … +356 °F) | ±(1.5 + 0.015 × reading) %RH |
Factory calibration uncertainty 3) (+20 °C) | ±0.6 %RH (0 … 40 %RH) |
Humidity sensor types | HUMICAP 180 |
Response time (90 %) with HUMICAPa 180 or 180C sensor at +20 °C (+68 °F) | |
in still air | |
with grid filter | 8 s |
with grid + steel netting filter | 20 s |
with sintered filter | 40 s |
Response time (90 %) with HUMICAPa 180R, 180RC, or 180VC sensor at +20 °C (+68 °F) in 0.1 m/s air flow | |
with grid filter | 17 s |
with grid + steel netting filter | 50 s |
with sintered filter | 60 s |
Temperature | |
Accuracy at +20 °C (+68 °F) | ± 0.2 °C (± 0.36 °F) |
Cable bushing | M20 × 1.5 for cable diameter |
Conduit fitting | 1/2" NPT |
User cable connector (optional) | M12 8-pin male |
Option 1 | Female plug with 5 m (16.4 ft) black cable |
Option 2 | Female plug with screw terminals |
Housing material | G-AlSi 10 Mg (DIN1725) |
IP rating | IP66 |
Weight | 1.0 … 3.0 kg (2.2 … 6.6 lb) depending on selected model and options |
Standard probe cable lengths | 2 m, 5 m, or 10 m (6.6 ft, 16 ft, or 33 ft) (Additional lengths available |
Probe Cable Diameter | |
HMT333 (+80 °C (+176 °F)) | 6.0 mm (0.24 in) |
Other probes | 5.5 mm (0.22 in) |
VAISALA溫濕度變送器HMT330系列介紹
VAISALA HMT330 系列 HUMICAP濕度和溫度變送器專為要求穩定的測量和廣泛的定制至關重要的工業應用而設計。 該儀器有多種選項可供選擇，可以根據每個單獨應用的特定需求進行定制，并針對每次交付進行預先配置。
特征
? 完整的 0 … 100 %RH 測量，溫度范圍高達 +180 °C (+356 °F)，具體取決于型號
? 耐壓高達 100 bar，具體取決于型號
? 第四代維薩拉 HUMICAPa 傳感器具有精度和穩定性
? 耐腐蝕IP65/IP66外殼
? 在惡劣條件下具有優異的性能； 良好的化學耐受性
? 測量和模擬輸出的可追溯校準（包括證書）

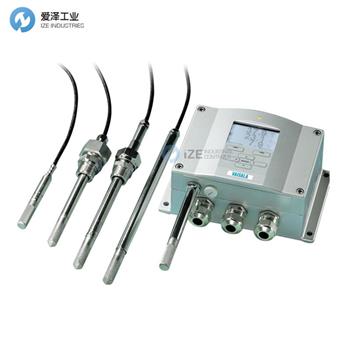

Vaisala HMT330 Series HUMICAPa Humidity and Temperature Transmitters are designed for demanding industrial applications where stable measurements and extensive customization are essential. With multiple options to choose from, the instrument can be tailored to meet the specific needs of each individual application and is pre-configured for each delivery.
Features
? Full 0 … 100 %RH measurement, temperature range up to +180 °C (+356 °F) depending on model
? Pressure tolerance up to 100 bar depending on model
? 4th generation Vaisala HUMICAPa sensor for superior accuracy and stability
? Corrosion-resistant IP65/IP66 housing
? Excellent performance in harsh conditions; good chemical tolerance
? Traceable calibration for measurement and analog outputs (certificates included)
VAISALA溫濕度變送器HMT330系列其他常見型號：
VAISALA HMT3307S0B104BCAC100A0CCAVAA1
VAISALA HMT3301A0A101BCAB100A01CABAA1
VAISALA HMT330820A101BCAJ100A01ANBAA1
VAISALA HMT3305MOB121CXAX100A0CAABAA1
VAISALA HMT3307S1D001XXCX103A0DAABAA
VAISALA HMT330360B101BCFH113A0AACBAA1
VAISALA HMT3307S1D101BCAE100A0FFCVAA1
VAISALA HMT330820B101BCAJ100A0AANBAA1
VAISALA HMT3307S0C021XXAA200 A0EAABAA
VAISALA Humidity and Temperature Transmitters NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VAISALA溫濕度變送器HMT3307S0C021XXAA200 A0EAABAA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VAISALA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VAISALA溫濕度變送器HMT330系列HMT3307S0C021XXAA200 A0EAABAA技術參數介紹
