BELIMO執行器TF24-S技術參數
Electrical data | |
Nominal voltage | AC/DC 24 V |
Nominal voltage frequency | 50/60 Hz |
Nominal voltage range | AC 19.2...28.8 V / DC 21.6...28.8 V |
Power consumption in operation | 2.5 W |
Power consumption in rest position | 1.5 W |
Power consumption for wire sizing | 5 VA |
Auxiliary switch | 1x SPDT, 0...100% |
Switching capacity auxiliary switch | 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V |
Connection supply / control | Cable 1 m, 2x 0.75 mm2 |
Connection auxiliary switch | Cable 1 m, 3 x 0.75 mm2 |
Parallel operation | Yes (note the performance data) |
Functional data | |
Torque motor | 2.5 Nm |
Torque fail-safe | 2.5 Nm |
Direction of motion motor | selectable by mounting L/R |
Direction of motion fail-safe | selectable by mounting L/R |
Manual override | No |
Angle of rotation | Max. 95° |
Angle of rotation note | adjustable starting at 37% in 2.5% steps (with mechanical end stop) |
Running time motor | 75 s / 90° |
Running time fail-safe | <25 s / 90° |
Sound power level, motor | 50 dB(A) |
Mechanical interface | Universal shaft clamp 6...12.7 mm |
Position indication | Mechanical |
Service life | Min. 60'000 fail-safe positions |
Safety data | |
Protection class IEC/EN | III, Safety Extra-Low Voltage (SELV) |
Protection class auxiliary switch IEC/EN | II, reinforced insulation |
Degree of protection IEC/EN | IP42 |
EMC | CE according to 2014/30/EU |
Low voltage directive | CE according to 2014/35/EU |
Certification IEC/EN | IEC/EN 60730-1 and IEC/EN 60730-2-14 |
Hygiene test | According to VDI 6022 Part 1 / SWKI VA 104-01, cleanable and disinfectable, low emission |
Type of action | Type 1.AA.B |
Rated impulse voltage supply / control | 0.8 kV |
Rated impulse voltage auxiliary switch | 2.5 kV |
Pollution degree | 3 |
Ambient humidity | Max. 95% RH, non-condensing |
Ambient temperature | -30...50°C [-22...122°F] |
Storage temperature | -40...80°C [-40...176°F] |
Servicing | maintenance-free |
Weight | |
Weight | 0.71 kg |

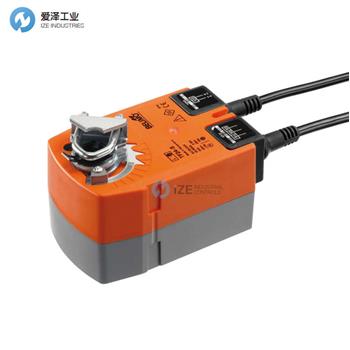

BELIMO執行器TF24-S產品介紹
旋轉執行器故障安全，2.5 Nm，AC/DC 24 V，打開/關閉，75 s，1x SPDT，IP42
Rotary actuator fail-safe, 2.5 Nm, AC/DC 24 V, Open/close, 75 s, 1x SPDT, IP42
