GRUNER執行器341-230-05技術參數
Nominal voltage | 230 VAC/DC, 50/60 Hz |
Voltage range | 85...265 VAC/DC |
Power consumption motor (motion) | 5,5 W |
Power consumption standby (end position) | 1,5 W |
Wire sizing | 9,5 VA |
Control | 2-point |
Connection motor | cable 1000 mm, 2 x 0,75 mm2 (halogen free) |
Torque motor | 5 Nm |
Torque spring | 5 Nm |
Damper size | up to approx. 1 m2 |
Synchronized speed | ±5% |
Direction of rotation | selected by mounting |
Manual override | manual operation |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stop |
Running time motor | 75 s / 90° |
Running time spring | 20 s / 90° |
Sound power level motor | < 45 dB(A) |
Sound power level spring | < 65 dB(A) |
Shaft coupling | clamp ? 8-13 mm / ? 8-16,5 mm |
Position indication | mechanical with pointer |
Service life | > 60 000 cycles (0°...95°...0°) |
Protection class | II (double insulation) |
Degree of protection | IP 54 |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage supply / control | 4 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions | 145 x 75 x 70 mm |
Weight | 1300 g |

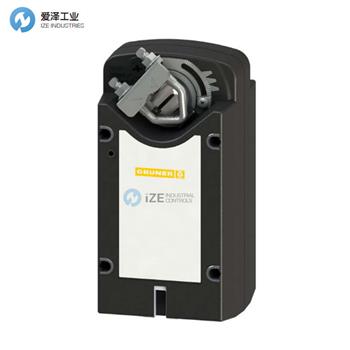

GRUNER執行器341-230-05產品介紹
彈簧復位伺服電機，5 Nm，230 VAC/DC，2 點，75 s / 90°，IP 54
用于調節 HVAC 裝置中阻尼器的彈簧復位伺服電機
Spring return servomotor, 5 Nm, 230 VAC/DC, 2-point, 75 s / 90°, IP 54
Spring return servomotor for adjusting dampers in HVAC installations
GRUNER執行器341系列其他常用型號：
GRUNER 341-024-05
GRUNER 341-024-05-S2
GRUNER 341-024D-03
GRUNER 341-024D-03-S2
GRUNER 341-230-05
GRUNER 341-230-05-S2
GRUNER 341-230D-03
GRUNER 341-230D-03-S2
GRUNER 341C-024-03
GRUNER 341C-024-03-S2
GRUNER 341C-024-05
GRUNER 341C-024-05-S2
