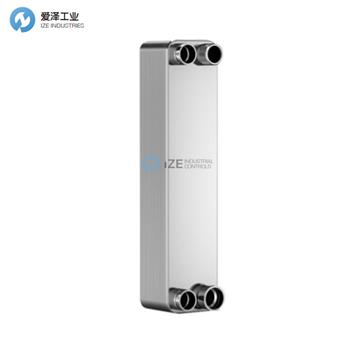

HENNLICH換熱器HCBP-8.20N-XXIG-00技術參數
2x3/4"+2x1/2"INTHEX
產品編號 HCBP- 820N-XXIG-00
板式熱交換器類型：鎳焊接
材料：不銹鋼 316 (1.4401)
板數：20
接口 A：G 3/4" IS0228
接口 B：G 1/2" ISO228
特殊：鎳焊接，最大壓力 14 bar
重量：2.5 kg
2x3/4"+2x1/2"INTHEX
Article no. HCBP- 820N-XXIG-00
Plate heat exchanger type: nickel soldered
Material: stainless steel 316 (1.4401)
Number of plates: 20
Connections A: G 3/4" IS0228
Connections B: G 1/2" ISO228
Special: nickel solder, p max 14 bar
Weight: 2.5 kg
HENNLICH換熱器HCBP系列介紹
描述
HENNLICH - Cooling-Technologies的HCBP板式換熱器/板式冷卻器用于冷卻液體或氣體。我們提供各種設計，覆蓋從最小尺寸到大冷卻能力和流量的需求。標準產品為銅焊換熱器，但也有雙壁（作為安全板式換熱器）或用于更具腐蝕性介質的鎳焊版本。不同的板式壓花和不同的壓力等級豐富了產品范圍。板通常由不銹鋼316制成（但也可以選用鈦）。
優勢
HCBP板式換熱器的特點是：
緊湊的設計
高效能
標準型號的交貨時間短
附加信息
HCBP板式換熱器也可配備如固定件或絕緣材料等配件。
Description
HCBP plate heat exchangers / plate coolers from HENNLICH - Cooling-Technologies are used to cool liquids or gases. Various designs are available, covering both the smallest dimensions and large cooling capacities and volume flows. Copper-soldered heat exchangers are available as standard. However, there are also versions with double walls (as safety plate heat exchangers) or with nickel soldering for more aggressive media.
Different plate embossings and also different pressure levels round off the range. The plates are usually made of stainless steel 316 (but titanium is also possible).
Advantages
HCBP plate heat exchangers are characterized by:
Compact design
High efficiency
Short delivery times for standard types
Additional information
The HCBP plate heat exchangers can also be supplied with accessories such as fastenings or insulation.
HENNLICH換熱器其他常用型號：
HENNLICH HCBP-8.20N-XXIG-00
HENNLICH HCBP-B5T
HENNLICH HCBP-B8T
HENNLICH HCBP-B10T
HENNLICH HCBP-B12
HENNLICH HCBP-B15T
HENNLICH HCBP-B16
HENNLICH HCBP-B25T
HENNLICH HCBP-B28
HENNLICH HCBP-B35
HENNLICH HCBP-B120T
HENNLICH HCBP-B56
HENNLICH HEAT EXCHANGER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HENNLICH換熱器HCBP-8.20N-XXIG-00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HENNLICH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
