GRUNER執行器362-230-40-S2/8FX系列技術參數
Technical data | |
Nominal voltage | 230 VAC/DC, 50/60 Hz |
Voltage range | 85...265 VAC/DC |
Power consumption motor (motion) | 8,5 W |
Power consumption standby (end position) | 1,5 W |
Wire sizing | 14,0 VA |
Wire sizing note | |
Control | 2-point |
Auxiliary switch | 2 x SPDT (AgAu) |
Contact load | 1 mA...5 (2,5) A, 5...250 VDC |
Switching point | 5° / 80° |
Connection motor | cable 1000 mm, 3 x 0,75 mm2 (halogen free) |
Connection auxiliary switch | cable 1000 mm, 6 x 0,75 mm2 (halogen free) |
Torque motor | 40 Nm |
Synchronized speed | ±5% |
Direction of rotation | selected by mounting |
Manual override | manual override |
Angle of rotation | 0°...max. 95° |
Running time motor | 60 s / 90° |
Sound power level motor | < 60 dB(A) |
Shaft coupling | form fit 8 mm (8F 8) |
Position indication | mechanical with pointer |
Service life | > 60 000 cycles (0°...95°...0°) |
Protection class | II (double insulation) |
Degree of protection | IP 54 |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage supply / control | 4 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions | 193 x 96 x 70 mm |
Weight | 1800 g |

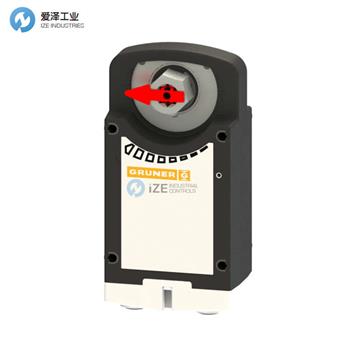

GRUNER執行器362-230-40-S2/8FX系列介紹
煙霧控制執行器，40 Nm，230 VAC/DC，2 點，60 s / 90°，IP 54，形狀配合，2x 輔助開關
旋轉執行器，用于調節 HVAC 裝置中的煙霧控制風門
Smoke control actuator, 40 Nm, 230 VAC/DC, 2-point, 60 s / 90°, IP 54, form fit, 2x Auxiliary switch
Rotary actuator for adjusting smoke control dampers in HVAC installations
GRUNER執行器362-230-40-S2/8FX系列其他常用型號：
GRUNER 362-230-40-S2/8F8
GRUNER 362-230-40-S2/8F10
GRUNER 362-230-40-S2/8F12
GRUNER 362-230-40-S2/8F14
