BENDIX壓縮機801732技術參數
Weights & Dimensions | |
Gross Weight | 33.38 Kilogram |
Net Weight | 33.38 Kilogram |
Length | 370.0 Millimeter |
Width | 195.0 Millimeter |
Height | 370.0 Millimeter |

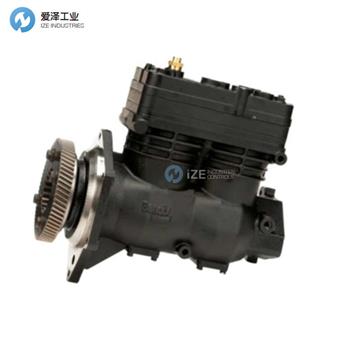

BENDIX壓縮機 BA-922系列
Bendix BA-922壓縮機是一款兩缸往復式壓縮機，1250 RPM 時的額定排量為每分鐘 31.6 立方英尺。
該壓縮機由水冷氣缸蓋、冷卻板、閥板組件以及整體風冷曲軸箱和氣缸體組成。 鑄鋁氣缸蓋包含所需的空氣端口和水端口以及兩個卸荷器活塞。 鑄鋁冷卻板提供額外的冷卻，位于氣缸蓋和閥板組件之間。 閥板組件由層壓釬焊鋼板組成，其中包含各種閥門開口和通道，用于將空氣和發動機冷卻劑導入和導出氣缸蓋。
排出閥是閥板組件的一部分。 氣缸蓋與冷卻板和閥板一起構成完整的氣缸蓋組件。
鑄鐵曲軸箱和氣缸體組件容納活塞、連桿、曲軸和相關軸承。
雖然并非所有壓縮機和充氣系統都配備可選的排放管線安全閥，但建議使用該組件。 排放管路安全閥安裝在氣缸蓋中（或靠近壓縮機排放口），可在排放管路凍結或堵塞時防止壓縮機過度加壓。
The Bendix? BA-922? compressor is a two cylinder, reciprocating compressor with a rated displacement of 31.6 cubic feet per minute at 1250 RPM.
The compressor consists of a water-cooled cylinder head, cooling plate, valve plate assembly, and an integral air cooled crankcase and cylinder block. The cast aluminum cylinder head contains the required air and water ports as well as two unloader pistons. The cast aluminum cooling plate provides added cooling and is located between the cylinder head and valve plate assemblies. The valve plate assembly consists of laminated, brazed steel plates which incorporate various valve openings and channels for conducting air and engine coolant into and out of the cylinder head.
The discharge valves are part of the valve plate assembly. The cylinder head, with the cooling and valve plates, comprise a complete cylinder head assembly.
The cast iron crankcase and cylinder block assembly houses the pistons, connecting rods, crankshaft and related bearings.
While not all compressors and charging systems are equipped with an optional discharge line safety valve, this component is recommended. The discharge line safety valve is installed in the cylinder head – or close to the compressor discharge port – and protects against over pressurizing the compressor in the event of a discharge line freeze up or blockage.
BENDIX壓縮機 BA-922系列其他常用型號：
BENDIX 5012895
BENDIX 5013058
BENDIX 5013059
BENDIX 5013695
BENDIX 5016389
BENDIX 801535
BENDIX 801594
BENDIX 801595
BENDIX 801732
BENDIX 802158
BENDIX NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BENDIX壓縮機801732BXW的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BENDIX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
BENDIX壓縮機801732BXW技術參數介紹
