OJ ELECTRONICS控制器OJ Air2 Master技術參數
TECHNICAL DATA | |
Supply voltage | 24 V AC ±10%, 50/60 Hz |
Power consumption | < 5 VA |
Max. consumption | 60 VA |
Electrical connection | Screw terminals, max. 1,5 mm2 |
TCP/IP | 10/100 Mbit Ethernet, RJ45 connector |
QuickPlug? Modbus | 5 x RJ12 (6P6C) |
SD card | Max. 8 GB SDHC |
Digital inputs | 6 x internal pull-up |
Digital outputs | 2 x potential-free relays, 230 V AC 5 A |
Analogue inputs | 2 x 0-10 V DC |
Analogue outputs | 3 x 0-10 V DC |
Sensor inputs | 2 x PT1000 |
Ambient temp., operating | 0/+50°C |
Ambient temp., storage | -50/+70°C |
Dimensions | 156 x 110 x 58 mm |
Enclosure | IP20, ABS |
Weight | 430 g |
BMS protocols | BACnet and Modbus TCP/IP Modbus RTU |
Web server | Built-in |
OJ ELECTRONICS控制器OJ Air2 Master產品介紹
OJ Air2 Master 是一款定制的靈活控制器，專為通風系統設計。它具有內置的網絡服務器，具有智能界面和簡單且有吸引力的用戶界面，可實現更佳的能耗控制。OJ Air2 Master 與復雜的通風裝置相關，具有經濟吸引力。它是一種簡單可靠的自動化單元，是基于專業技術能力和應用知識而開發的。

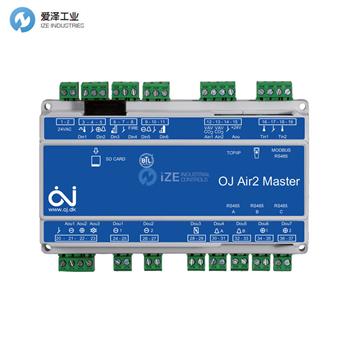

OJ Air2 Master is a custom made and flexible controller, specifically designed for ventilation systems. It has a built-in web server with intelligent interface and a simple and attractive user interface, which allows optimal energy consumption control. OJ Air2 Master is financially attractive in association with complex ventilation units. It is a simple and reliable automation unit, which has been developed based on specialised technical competence and application knowledge.
OJ ELECTRONICS控制器OJ Air2系列其他常用型號：
OJ ELECTRONICS OJ Air2 Extension Module 45
OJ ELECTRONICS OJ Air2 FANIO
OJ ELECTRONICS OJ Air2 Extension Module
OJ ELECTRONICS OJ Air2 HMI 35T
OJ ELECTRONICS OJ Air2 FANIO21
OJ ELECTRONICS OJ Air2 Master
OJ ELECTRONICS CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
