GRUNER執行器328CS-024-02A技術參數
Electrical data | |
Nominal voltage | 24 VAC/DC, 50/60 Hz |
Nominal voltage range | 19...29 VAC/DC |
Power consumption motor (motion) | 11,0 W |
Power consumption standby (end position) | 1,0 W |
Wire sizing | 14,0 VA |
Control | continuous control (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ resolution 80 mV |
Feedback signal | (0)2...10 VDC, max. 5 mA |
Connection motor | cable 1000 mm, 4 x 0,75 mm2 (halogen free) |
Functional data | |
Torque | 2 Nm |
Damper size | up to approx. 0.4 m2 |
Synchronized speed | ±5% |
Direction of rotation | selected by switch |
Manual override | Gearing latch disengaged with pushbutton, self-resetting |
Angle of rotation | 0°...max. 95° can be limited with adjustable mechanical end stops ; |
Running time | < 1 s / 90° |
Sound power level | < 60 dB(A) |
Shaft coupling | clamp ? 8-15 mm / ? 8-20 mm |
Position indication | mechanical with pointer |
Service life | > 100 000 cycles (0°...95°...0°) |
Safety | |
Protection class | III (safety extra-low voltage) |
Degree of protection | IP 54 (cable downwards) |
EMC | CE (2014/30/EU) |
LVD | CE (2014/35/EU) |
RoHS | CE (2011/65/EU - 2015/863/EU - 2017/2102/EU) |
Mode of operation | Typ 1 (EN 60730-1) |
Rated impulse voltage | 0,8 kV (EN 60730-1) |
Control pollution degree | 3 (EN 60730-1) |
Ambient temperature normal operation | -30°C...+50°C |
Storage temperature | -30°C...+80°C |
Ambient humidity | 5...95% r.H., non condensing (EN 60730-1) |
Maintenance | maintenance free |
Dimensions / Weight | |
Dimensions | 172 x 65 x 87 mm |
Weight | 700 g |

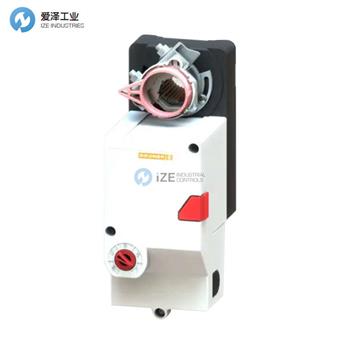

GRUNER執行器328CS-024-02A產品介紹
用于調節 HVAC 裝置中風門的旋轉執行器
? 運行時間 1 秒/90°
? 扭矩 2 Nm
? 標稱電壓 24 VAC/DC
? 控制連續控制 (0)2...10 VDC
? 阻尼器尺寸可達約0.4 m2
? 聯軸器夾 8-15 mm / ? 8-20 mm
Rotary actuator for adjusting dampers in HVAC installations
? Running time 1 s / 90°
? Torque 2 Nm
? Nominal voltage 24 VAC/DC
? Control continuous control (0)2...10 VDC
? Damper size up to approx. 0.4 m2
? Shaft coupling clamp ? 8-15 mm / ? 8-20 mm
GRUNER執行器328系列其他常用型號：
GRUNER 328CS-024-02A
GRUNER 328CS-024-10B
GRUNER 328CS-024-05B
GRUNER 328CS-024-15B
GRUNER Damper Actuators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRUNER執行器328CS-024-02A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRUNER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GRUNER執行器328CS-024-02A技術參數及介紹
